Ürün No: BE0500



Açık akış oranı: 32 Litre/dak

Akış oranı (1 metre): 28 Litre/dak

Maksimum atış mesafe: 3 metre

Voltaj: 12 Volt

Akım tüketimi: 2 amper

Kablo kesiti: 1.5mm²

Ağırlık: 280 gr

Hortum bağlantı çapı: 19mm

Yükseklik: 83mm

Genişlik: 102mm

Derinlik (çap): 79mm





-----------------------------

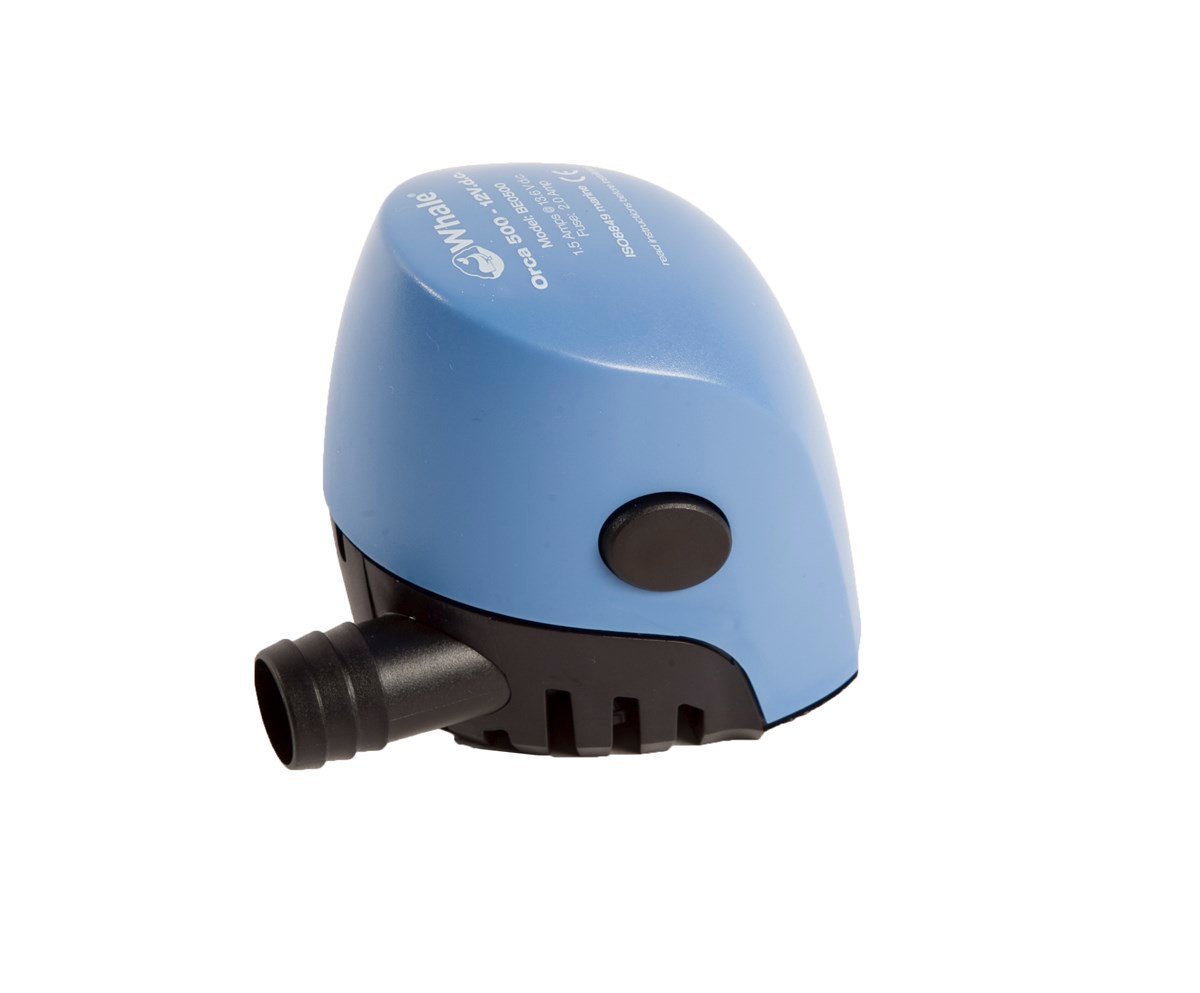

Whale ORCA Series 500 - 12V Electric Bilge Pump

Compact, Powerful and Automatic Electric submersible bilge pump with wide product range. A separate bilge floater is required.



Competitive Advantages;

• Easy installation
• Longer life battery with low energy consumption
• Easy to maintain thanks to easy access to motor and filter area
• Smooth adaptation to compact bilge areas
• Five different capacity alternatives
• CE and NMEA approved



MODEL ORCA 500-12

Product Number: BE0500



Open flow rate: 32 ltrs/min (500 US GPH)
Flow rate at 1 meter: 28 ltrs/min (450 US GPH)
Maximum discharge head: 3m (9.8ft)
Voltage: 12V d.c
Current consumption: 2 amps
Cable cross section: 1.5mm² (16AWG)
Weight: 0.28kg (0.6lbs)
Hose connection diameter: 19mm (1^3/4'')
Height: 165mm
Width: 144mm
Depth (diameter): 121mm
