WHALE DOUBLESTACK (Çift Katlı) Otomatik Hidrofor Serisi

• 8 adete kadar çıkış bağlantısına pürüzsüz su temini
• Düşük kapasite ihtiyaçlarda tek pompa çalışarak, enerji tasarrufu sağlar
• Önceden hazırlanmış, montajı kolay sistem
• Değişken çıkışlardan yüksek akış oranı
• Çok düşük taban alanı,
• Sessiz, otomatik çalışma
• Tam sızdırmaz korumalı motor bölümü
• Dahili elektronikler
• Kıvılcım korumalı

---------------------------------------

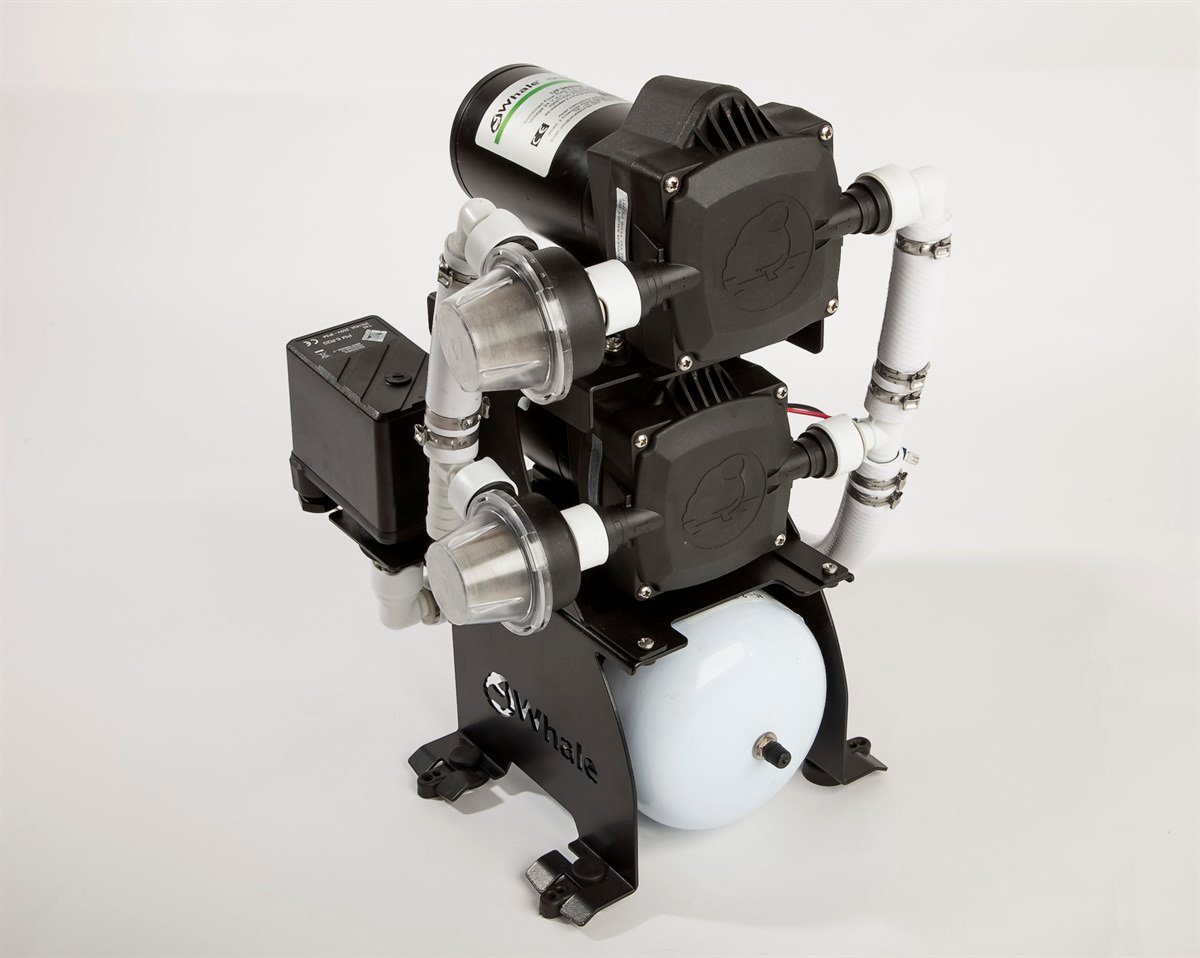

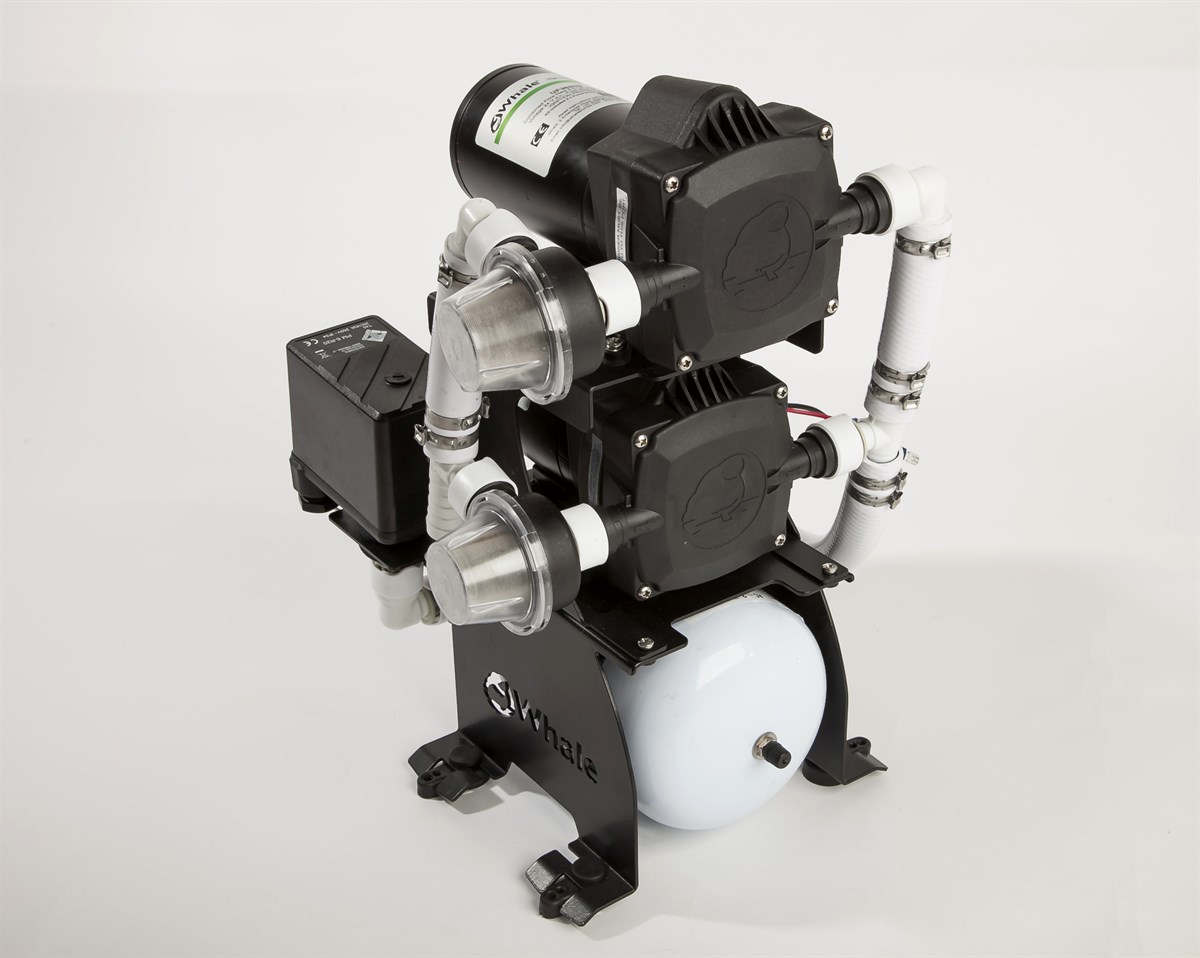

WHALE DOUBLESTACK Automatic Pump System Series

Double-deck high-capacity fresh water systems
Traditionally, automatic pressure pump designs focus primarily on high power or performance, but designing them to withstand harsh sea conditions takes experience and that's our job.

Competitive Advantages;
Smooth water supply up to 8 outlet connections
Provides energy savings by operating a single pump in low capacity needs
Pre-assembled, easy-to-install system
High flow rate from a variety of outlets
Small footprint
Quiet, automatic operation
Fully sealed engine compartment
Internal electronics
Spark protected

Model DOUBLESTACK 24-24
Product Code: UF2425B

Product Specifications
---------------------------------
Open flow rate: 24 Liters/Min (6.3 US Gals)

Number of outputs: 6 outputs
Expansion tank capacity: 2 liters
Voltage: 24V d.c
Current consumption: 2 amps
Recommended fuse: 5 amps
Cable cross section: 2.5mm²
Hose connection diameter: 19mm
System pressure: 2.2 bar (32 psi)
Weight: 8.7 kg (19lbs)
Dimensions (HxWxD): 407x310x310mm
