Veratron VMH35 GPS Multifunctional Digital Screen 12V

Price : €335,00  + VAT
Incl. VAT : ₺21.522,28
Price in TL : ₺17.935,23(₺3.587,05 + VAT)
iskontoen
:

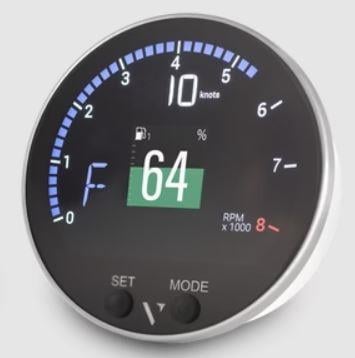

Veratron VMH 35 12V GPS Digital Screen

Framed by a brushed stainless ring and mineral-glass lens, the VMH 35 delivers a wealth of vessel data in a compact package sized for tight helm stations and small consoles.

An embedded GNSS receiver supplements navigation data while the screen directly monitors analog inputs such as fuel, trim, and tachometer. A dedicated Intelligent Battery Sensor (IBS) port safeguards critical 12 V banks, and the certified gateway forwards every data point onto NMEA 2000.

Key Features

  • Sleek black-glass styling with stainless ring
  • Sun-readable color hybrid screen bonded to mineral glass
  • Dedicated Intelligent Battery Sensor (IBS) port
  • Analog-to-NMEA 2000 gateway
  • Integrated high-performance GNSS receiver
  • NMEA 2000 certified
  • Customizable start screen
  • 83 mm screen size

Technical Specifications

Parameter Value
Series VMH
Function Multifunction screen
Nominal Voltage 12 V
Bezel Brushed stainless steel
Screen Size 83 mm round hybrid screen
Connectivity NMEA 2000, EasyLink, LIN
Analog Inputs 2 × resistive / 1 × frequency
Operating Voltage 9 – 16 V DC
Current Draw ≤ 150 mA (normal mode)
Protection IPX7 (front and back)
Dimensions Ø 100 mm outer / 85 mm cutout
Front Lens Optically bonded mineral glass
Screen Color IBN + 1.44" TFT
Connectors Molex MX-150 (12-pin) / DeviceNet M12 (5-pin)
Certifications NMEA 2000 certified, embedded analog gateway
