Veratron VMH 70 Multifunction 7'' Display B00129201

Veratron VMH 70 Multifunction 7'' Display B00129201

Price : €1.315,00  + VAT
Incl. VAT : ₺84.482,96
Price in TL : ₺70.402,47(₺14.080,49 + VAT)
iskontoen
Veratron VMH 70 Multifunction 7" Display B00129201
:

Veratron VMH 70 Multifunction 7'' Display B00129201

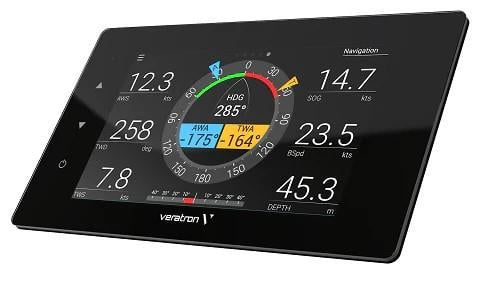

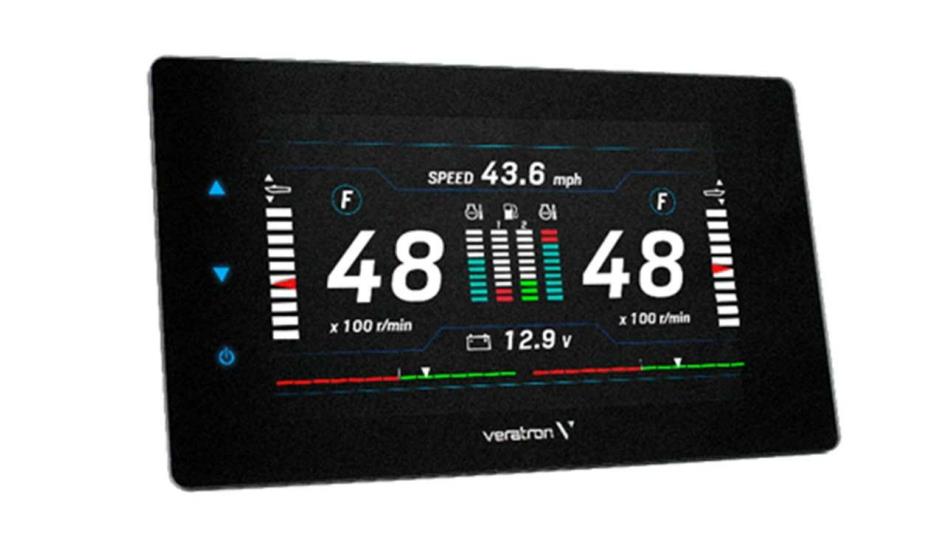

Premium 7-inch multifunction display that puts power and control at your fingertips. The VMH 70 screen efficiently manages large amounts of complex data with superior performance, while the real-time operating system provides instant access to vital engine information as soon as the device powers on. Features NMEA 2000 connectivity for displaying data from up to four engines simultaneously, or two engines via J1939 and analog inputs. Offers extensive customization options allowing users to group and organize information such as single or dual engine status, battery performance, fuel, water, waste tank levels, rudder and trim, onboard systems, navigation, and weather data according to their needs.



Key Features

  • Premium 7-inch multifunction display with 800 x 480 resolution
  • Real-time operating system for instant access to vital information
  • NMEA 2000 connectivity for up to four engines simultaneously
  • J1939 support for two engines via digital inputs
  • Extensive analog inputs: 6x resistive, 2x frequency, 3x voltage, 2x capacitive
  • Comprehensive data display: engine status, battery, fuel, water, waste tanks, rudder, trim, navigation, weather
  • Extensive customization options for organizing information
  • Waterproof construction with IP X7 protection rating
  • Wide operating voltage range 9 - 32 V
  • Aluminum housing with PBT and mineral glass front panel


Technical Specifications

Parameter Value
Materials Aluminum housing, PBT and mineral glass front panel
Nominal Voltage 12 / 24 V
Operating Voltage 9 - 32 V
Current Consumption ≤ 900 mA (normal mode) + 100 mA per EasyLink satellite display
Dimensions 220 x 128 mm (external), 118 x 206 mm (mounting hole)
Resolution 800 x 480
Protection Rating IP X7 (with cables connected)
Digital Inputs NMEA 2000, SAE J1939, Composite video, Alarm input
Analog Inputs (Sensor) 6x resistive, 2x frequency, 3x voltage, 2x capacitive
Data Output NMEA 2000, EasyLink, Alarm output
Operating Temperature -25 °C to +70 °C
Certification NMEA 2000 certified, with integrated analog gateway
Model / Part No. B00129201
