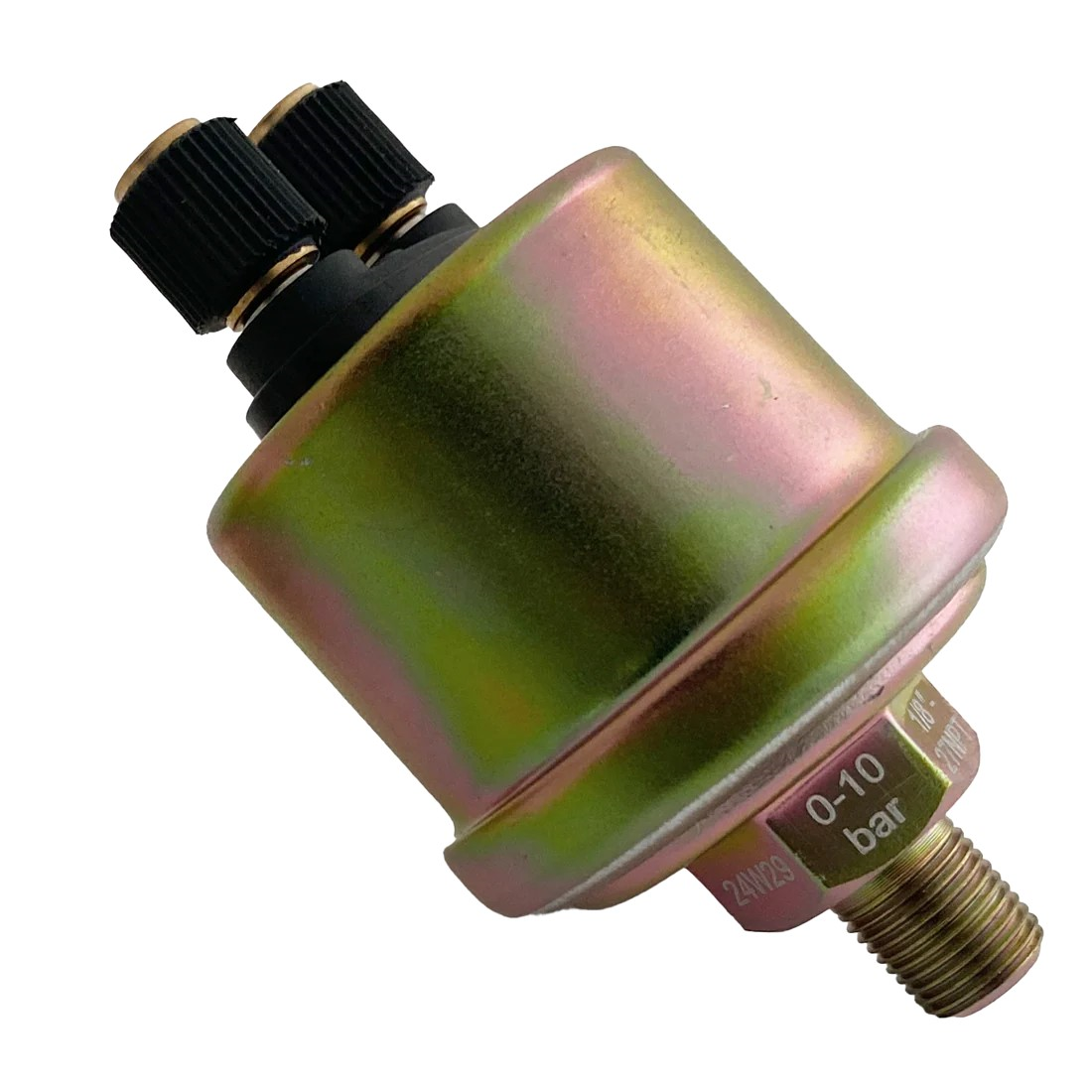

VDO Pressure Sensor 10 Bar / 145 Psi / 1,8'' - B002008

Price : €29,00  + VAT
Incl. VAT : ₺1.863,12
Price in TL : ₺1.552,60(₺310,52 + VAT)
:

Veratron Pressure Sensor 10bar (Insulated Return) 1/8-27npt

Veratron's Pressure Sensors deliver a stable quality reading during a long lifespan. They have excellent anti-vibration performance and a wide operating temperature range.

The sensors can be used in a wide range of applications. All sensors come with a sensor output and an insulated ground pin, providing reliable pressure monitoring for engine oil and transmission oil systems.

Key Features & Benefits

  • Long service life
  • Easy installation
  • Standard 10-184 Ohm output
  • Wide operating temperature range (-25 to 120°C)
  • Insulated ground pin
  • Excellent anti-vibration performance
  • Resistive output signal
  • 1/8-27 NPT thread for standard mounting

Applications

  • Engine oil pressure monitoring
  • Transmission oil pressure systems
  • Marine applications
  • Automotive applications

What's Included

  • Pressure sensor
  • Sensor output connector
  • Insulated ground pin
  • M4 knurled nut connector

Technical Specifications

Parameter Value
Article Number B002008
Function Engine oil pressure, Transmission oil pressure
Thread 1/8 - 27 NPT
Calibration 10-184 Ohm
Measurement Range 10 bar
Output Signals Resistive
Operating Temperature -25 to 120°C
Protection Rating IP67
Maximum Mounting Torque 30 Nm
Connector M4 knurled nut
