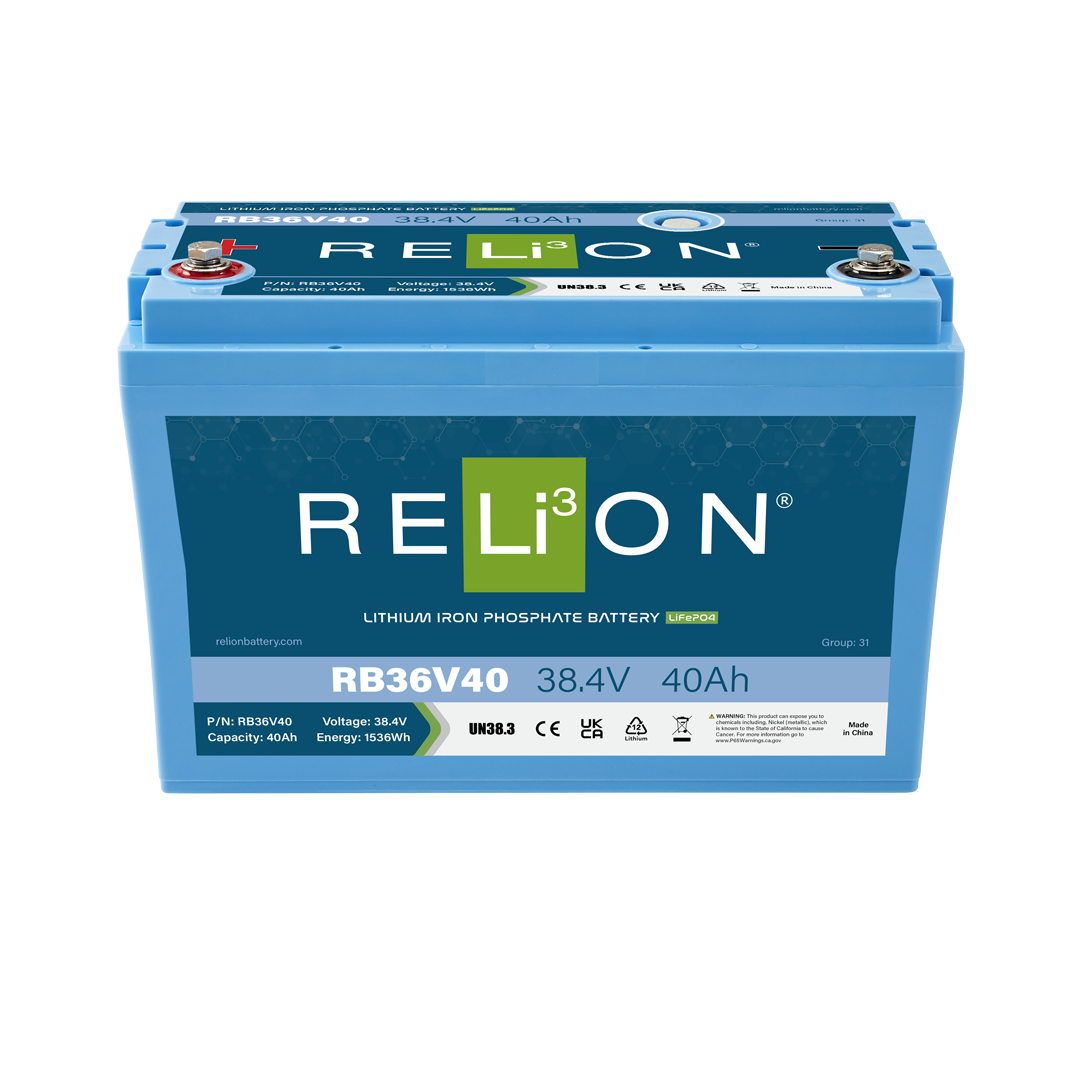

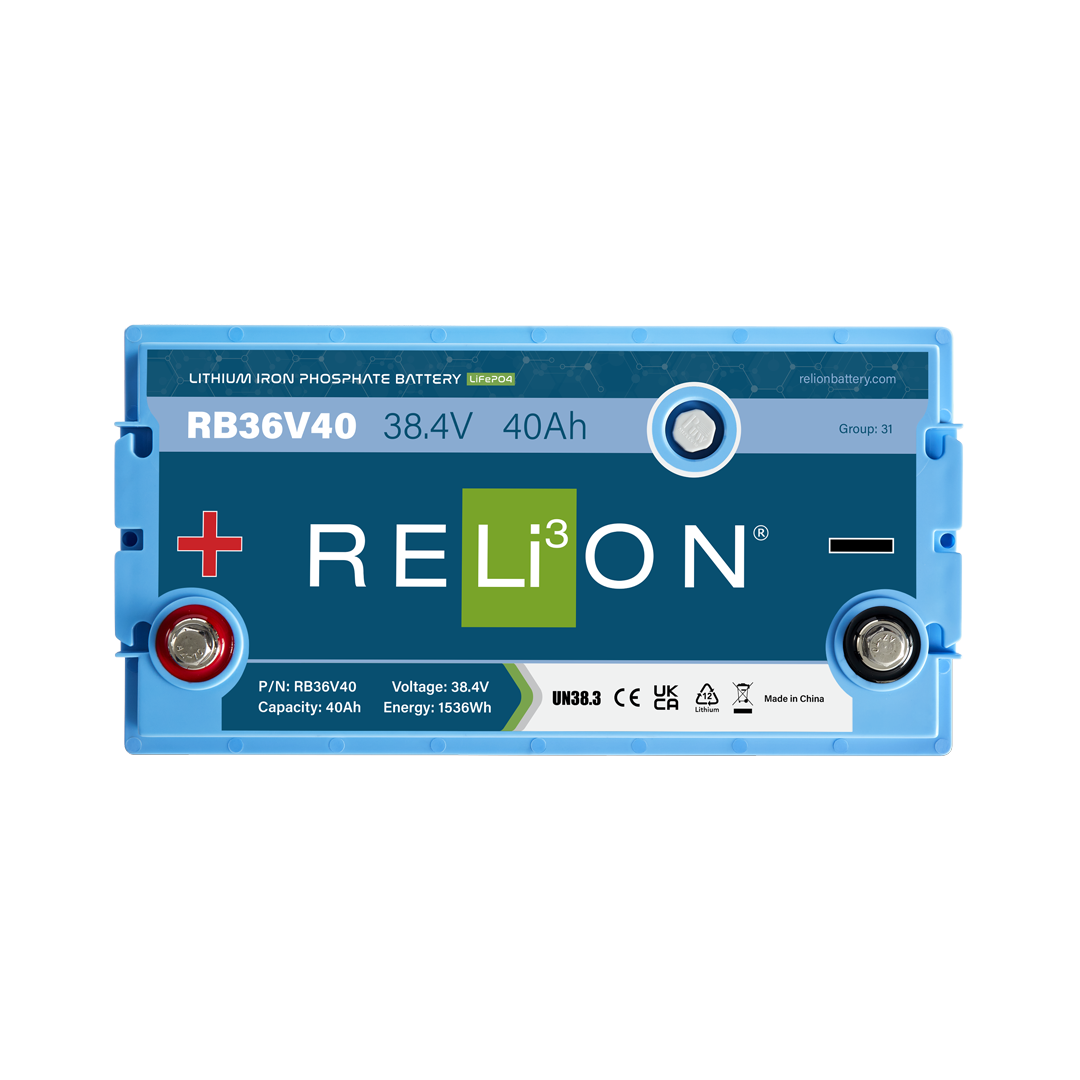

RELiON Lithium Battery 36V - RB36V40

Purpose-built for 36V marine applications, RELiON's 40Ah lithium battery delivers reliable power with the safest LiFePO4 chemistry. This maintenance-free battery offers consistent full power throughout discharge without voltage drop, providing up to 10x longer lifespan than lead-acid batteries at half the weight. Designed with unlimited parallel connection capability, it's perfect for expanding your battery bank while maintaining 36V series configuration.

Key Features

Safest lithium chemistry – All RELiON batteries use LiFePO4 cathode and built-in Battery Management System (BMS) for long lifetime and high-accuracy State of Charge calculations
Temperature tolerant – Handles wide temperature ranges, 2.5x more efficient at low temperatures than lead-acid, safely operates up to 149°F (65°C)
Lightweight – Provides more power than lead-acid batteries at typically half the weight, boosting performance and agility
Constant power – Full power available throughout discharge with no voltage drop like lead-acid batteries
Eco-friendly & safe – No gassing, no fumes, no pollution, non-hazardous clean energy
Maintenance free – Plug, play, and charge with no watering or corrosion concerns
Partial State of Charge tolerant – PSOC doesn't affect performance or battery life, perfect for applications where batteries don't always fully charge

Technical Specifications

Parameter	Value
Model / Part No.	RB36V40
Nominal Voltage	38.4 V
Nominal Capacity	40 Ah
Capacity @ 25A	96 min
Resistance	≤50 mΩ @ 50% SOC
Efficiency	99%
Self-Discharge	<3% per month
Series Connections	No. 36V system only
Parallel Connections	Unlimited
Maximum Continuous Discharge Current	50 A
Peak Discharge Current	175 A (7.5 s ±2.5 s)
Discharge Over-Current Protection	200A ±35A (100 ±50ms)
Recommended Low Voltage Disconnect	30.0 V
Discharge Under-Voltage Protection	27.6 V (2.3 ±0.01 vpc)
Reconnect Voltage	30.0 V (2.5 ±0.08 vpc)
Short Circuit Protection Response Time	200-800 µs
Discharge Temperature	-4 to 140°F (-20 to 60°C)
Charge Temperature	-4 to 113°F (-20 to 45°C)
Recommended Storage Temperature	23 to 95°F (-5 to 35°C)
High Temperature Cut-Off	167°F (75°C)
Reconnect Temperature	149°F (65°C)

Parameter	Value
Recommended Charge Current	4 A – 20 A
Maximum Continuous Charge Current	40 A
Charge Current @ 14 to 32°F (-10 to 0°C)	≤0.1 C (4 A)
Charge Current @ -4 to 14°F (-20 to -10°C)	≤0.05 C (2 A)
Recommended Charge Voltage	42.6 V - 43.8 V
BMS Charge Voltage Cut-Off	46.2 V (3.85 ±0.025 vpc)
Reconnect Voltage	43.8 V (3.65 ±0.05 vpc)
Balancing Voltage	41.7 V (3.475 vpc)
Dimensions (L x W x H)	13 x 6.8 x 8.4" (329 x 172 x 214.7 mm)
Weight	30.9 lbs (14 kg)
Terminal Type	M8 x 1.25 x 12 mm
Terminal Torque	80 - 100 in-lbs (9 - 11 N-m)
Case Material	ABS & PC blend (UL94-V0 flame rating)
Protection Rating (Waterproof)	IP67
Cell Type - Chemistry	Cylindrical - LiFePO4
