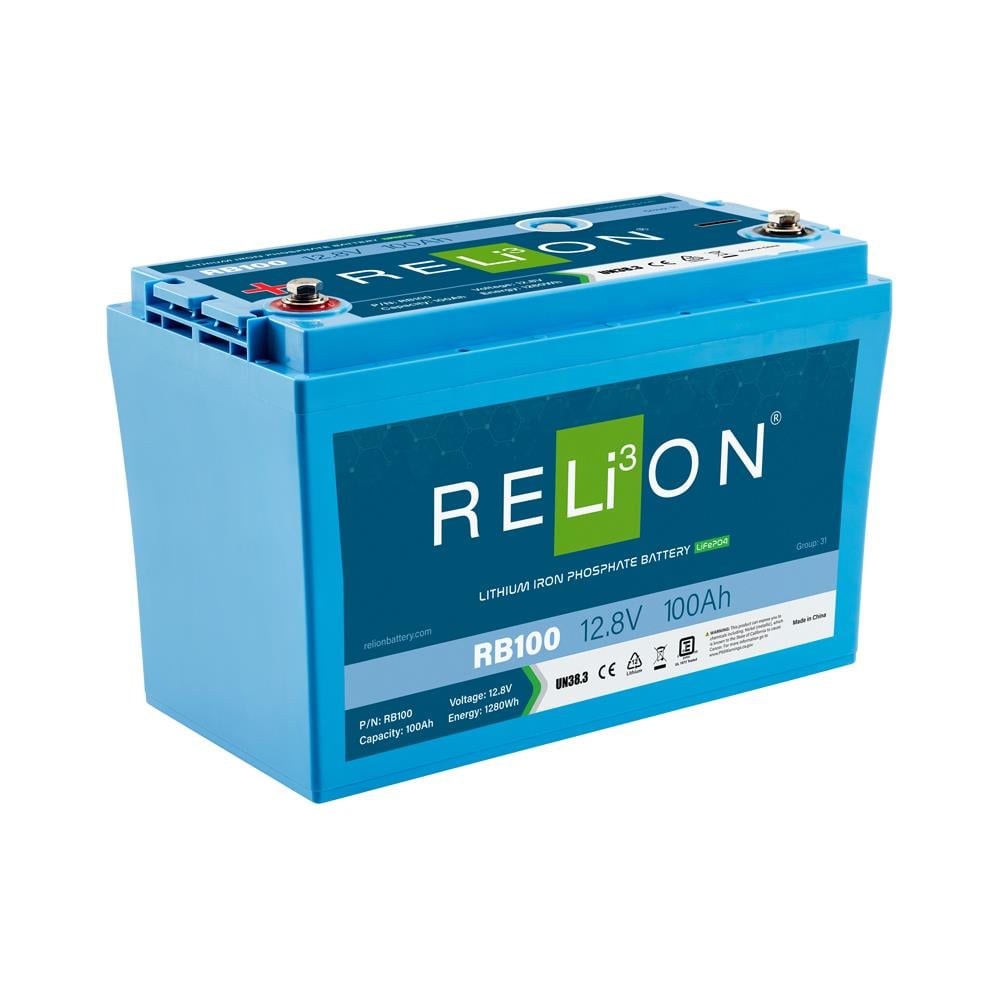

RELiON 100Ah Lithium Battery 12V - RB100

RELiON 100Ah Lithium Battery 12V - RB100

Price : €1.000,00  + VAT
Incl. VAT : ₺64.274,40
Price in TL : ₺53.562,00(₺10.712,40 + VAT)
iskontoen
RELiON 100Ah Lithium Battery 12V - RB100
:
Add to Wishlist
Add to My Wishlist
Compare
Notify me when the price goes down
Notify me when it is in stock
Recommend
Write a comment

RELiON 100Ah Lithium Battery 12V - RB100

Experience the power and reliability of RELiON's 12V 100Ah lithium battery, engineered with the safest LiFePO4 chemistry for marine applications. Delivering full power throughout discharge without voltage drop, this maintenance-free battery provides up to 10x longer lifespan than lead-acid alternatives while weighing half as much. Perfect for Group 31 applications, it offers 99% efficiency and can be connected in series or parallel configurations to meet your power needs.



Key Features

  • Safest lithium chemistry – All RELiON batteries use LiFePO4 cathode and built-in Battery Management System (BMS) for long lifetime and high-accuracy State of Charge calculations
  • Temperature tolerant – Handles wide temperature ranges, 2.5x more efficient at low temperatures than lead-acid, safely operates up to 149°F (65°C)
  • Lightweight – Provides more power than lead-acid batteries at typically half the weight, boosting performance and agility
  • Constant power – Full power available throughout discharge with no voltage drop like lead-acid batteries
  • Eco-friendly & safe – No gassing, no fumes, no pollution, non-hazardous clean energy
  • Maintenance free – Plug, play, and charge with no watering or corrosion concerns
  • Partial State of Charge tolerant – PSOC doesn't affect performance or battery life, perfect for applications where batteries don't always fully charge


Technical Specifications

Parameter Value
Model / Part No. RB100
Nominal Voltage 12.8 V
Nominal Capacity 100 Ah
Energy 1280 Wh
Capacity @ 25A 240 min
Resistance ≤30 mΩ @ 50% SOC
Efficiency 99%
Self-Discharge <3% per month
Maximum Batteries Connected in Series 6
Maximum Continuous Discharge Current 100 A
Peak Discharge Current 200 A (7.5 s ±2.5 s)
Discharge Over-Current Protection 280 A ±50 A (9 ±4 ms)
Recommended Low Voltage Disconnect 11.0 V
Discharge Under-Voltage Protection 8 V (2.0 ±0.08 vpc) (140 ±60 ms)
Discharge Reconnect Voltage 9.2 V (2.3 ±0.1 vpc)
Short Circuit Protection Response Time 200-600 µs
Discharge Temperature -4 to 140°F (-20 to 60°C)
Charge Temperature -4 to 113°F (-20 to 45°C)
Recommended Storage Temperature 23 to 95°F (-5 to 35°C)
BMS High Temperature Cut-Off 176°F (80°C)
Reconnect Temperature 122°F (50°C)
Parameter Value
Recommended Charge Current 5 A - 50 A
Maximum Continuous Charge Current 100 A
Charge Current @ 14 to 32°F (-10 to 0°C) ≤0.1 C (10 A)
Charge Current @ -4 to 14°F (-20 to -10°C) ≤0.05 C (5 A)
Recommended Charge Voltage 14.2 V - 14.6 V
BMS Charge Voltage Cut-Off 15.6 V (3.9 ±0.025 vpc) (1.1 ±0.4 s)
Reconnect Voltage 15.2 V (3.8 ±0.05 vpc)
Balancing Voltage 14.4 V (3.6 ±0.025 vpc)
Dimensions (L x W x H) 13 x 6.8 x 8.4" (329 x 172 x 214 mm)
Weight 26.4 lbs (11.98 kg)
Terminal Type M8 x 1.25 x 12mm
Terminal Torque 80 - 100 in-lbs (9 - 11 N-m)
Case Material ABS & PC blend (UL94-V0 flame rating)
Protection Rating (Waterproof) IP67
Cell Type - Chemistry Cylindrical - LiFePO4
Certifications UN38.3, CE & UKCA (battery), UL1642 (cells) File# MH64523, IEC62133 (cells)
Shipping Classification UN 3480, CLASS 9
