Mastervolt Masterswitch 5 KW - 55006010

Mastervolt Masterswitch 5 KW - 55006010

Price : €435,00  + VAT
Incl. VAT : ₺28.060,11
Price in TL : ₺23.383,43(₺4.676,69 + VAT)
iskontoen
Mastervolt Masterswitch 5 KW - 55006010
:

Mastervolt Masterswitch 5 KW - 55006010

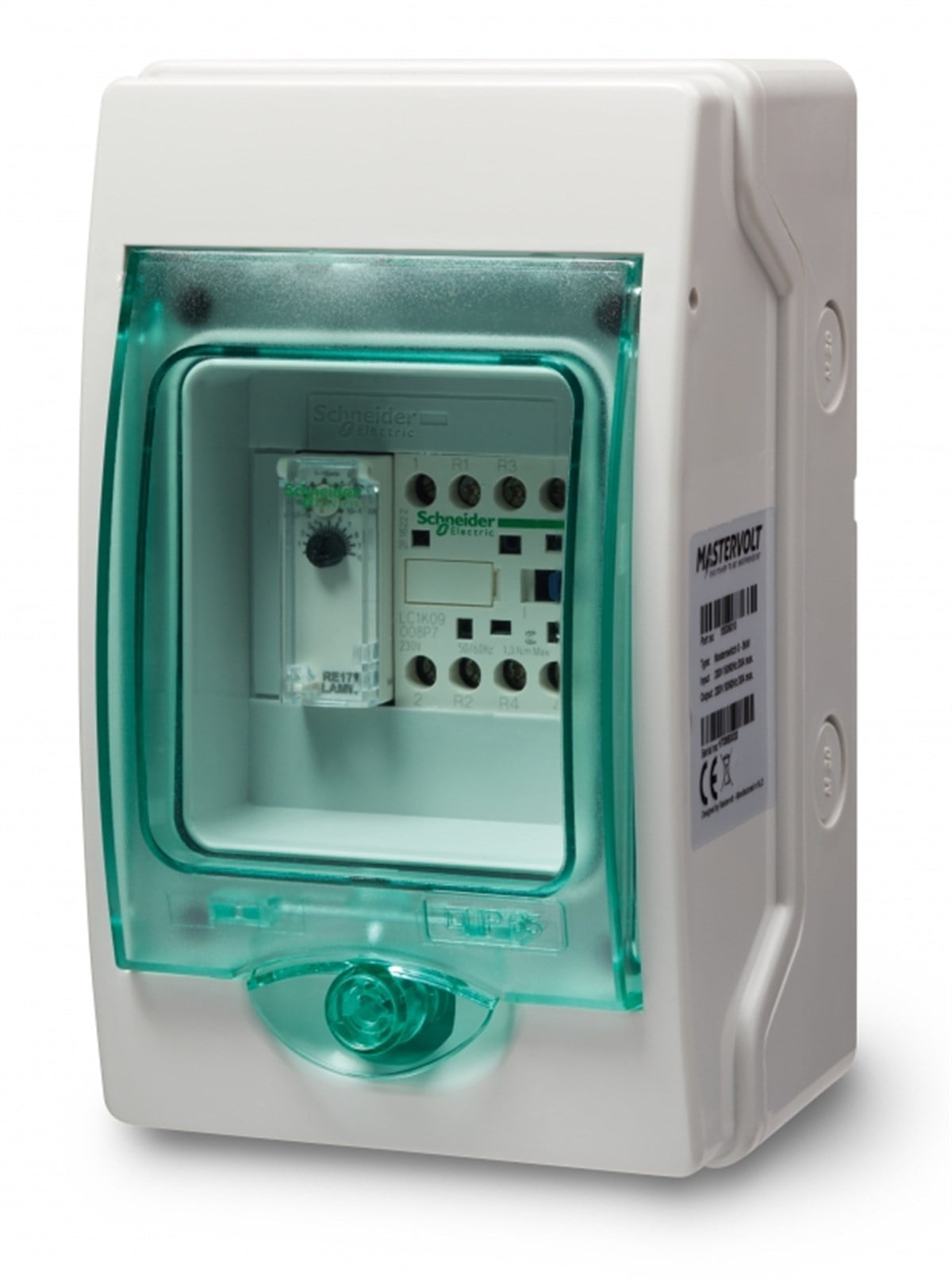

The Mastervolt Masterswitch 5 kW is a transfer switch that automatically routes AC power sources (shore power, generator, or inverter) on your vessel's electrical system. It always connects the output to the highest-priority available input.

With its dual-input, single-output design and lightweight construction, it integrates with the 230 V vessel electrical system; it enables safe use of high-consumption devices with limited shore power or generator power. It offers an adjustable generator input delay and fast transfer time.

Key Features

  • Automatic transfer between sources
  • Dual input / single output design
  • Lightweight construction
  • Adjustable generator input delay (0–10 sec)
  • Fast transfer (open 12–22 ms · close 4–19 ms)
  • Integrates with 230 V vessel AC system

Applications

  • Automatic switching between shore power / generator / inverter
  • 230 V vessel AC systems
  • High-consumption management on limited power

In the Box

  • Masterswitch 5 kW unit

Technical Specifications

GeneralValue
Part No.55006010
Nominal input voltage230 V (50/60 Hz)
Input range200-250 V
Input / Output2 / 1
Power5,000 W
Dimensions (H×W×D)200 × 110 × 115 mm
Weight1.2 kg
ElectricalValue
Rated current (shore/gen./output)20 A
Generator input delay0–10 sec adjustable
Transfer timeOpen 12–22 ms · Close 4–19 ms
Power consumption7 W
Operating temperature-25 °C … 70 °C
Protection rating · MasterBusIP55 · No

Expert Support

Plan your AC power management and transfer solution with our expert team.Feel free to reach out with any questions.
