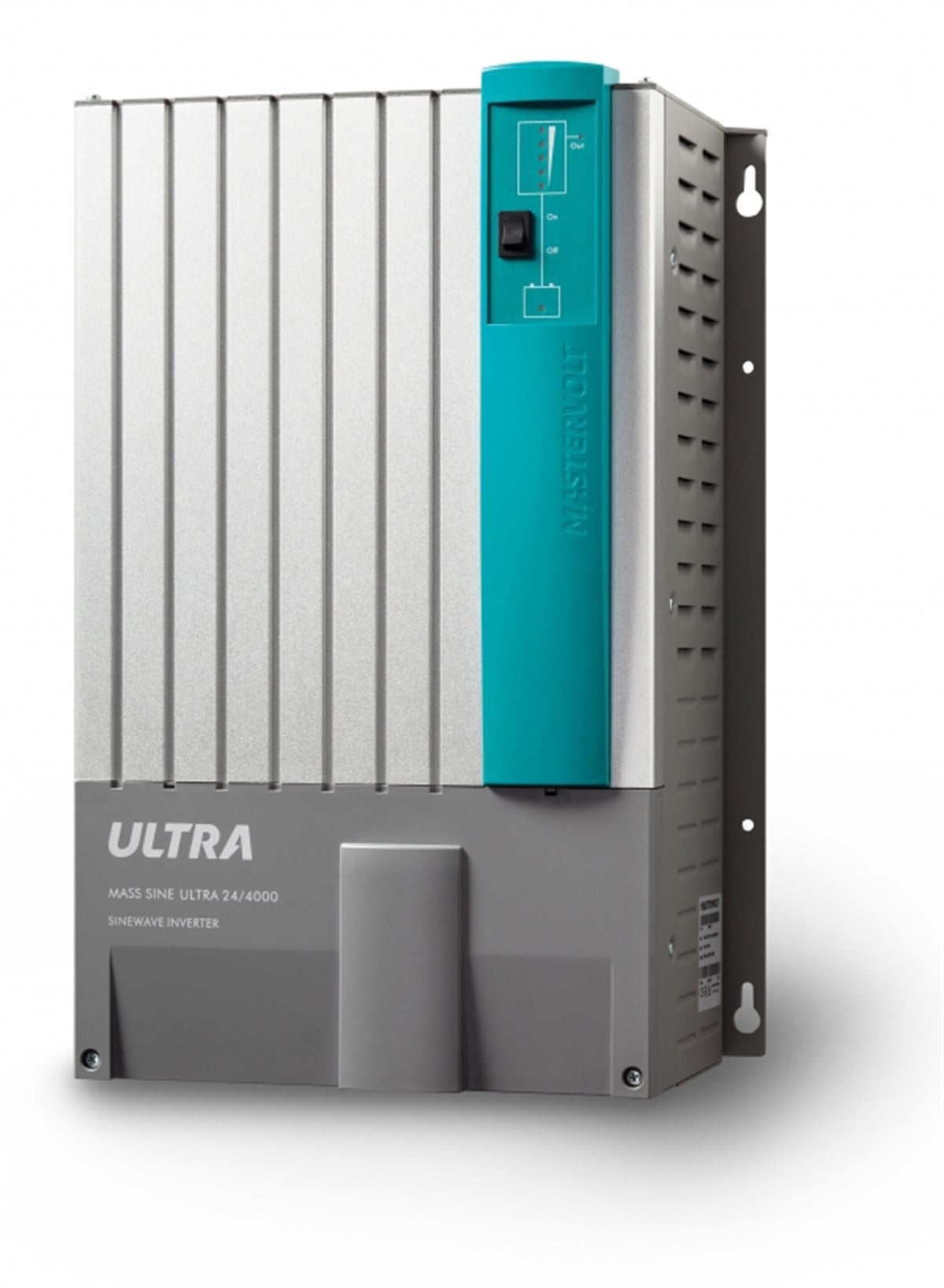

Mastervolt Mass Sine Ultra 24/4000 Inverter - 26024000

Advanced V6 technology pure sine wave inverter expanding the Mass Sine product range. Mastervolt offers inverter series ranging from 300 watts to 35 kW capacity: AC Master, Mass Sine, and Mass Sine Ultra models. The new Mass Sine Ultra model features increased efficiency through the latest V6 technology, enabling multiple units to be connected in parallel or for three-phase applications. High-frequency switch technology provides quiet operation without transformer noise while delivering maximum efficiency.

Key Features

Latest V6 high-frequency switching technology for increased efficiency
Quiet operation without transformer noise and hum
200% surge current capability for devices requiring extra load at startup
Efficient battery usage with high efficiency mode, automatic economy mode, and zero consumption when idle
Simple and easy installation with robust connection technology
MasterBus compatible for easy network integration
Parallel operation possible (up to 10 units)
Three-phase operation possible (3x3 units)
Professional and semi-professional applications for heavy-duty loads
True pure sine wave output for sensitive equipment

Technical Specifications

Parameter	Value
Model / Part No.	26024000
Output Voltage	230 V ± 2% – 50/60 Hz adjustable ± 0.005%
Waveform	True Pure Sine Wave
Nominal Battery Voltage	24 V
Continuous Power @ 40°C, cos phi 1	4000 W
Surge Current	7000 W
AC Connections	Internal
Efficiency	92%
Parallel Operation	Possible, up to 10 units
Three-Phase Operation	Yes, 3x3 units
Display	LED indicator
Minimum Battery Capacity	> 350 Ah
Dimensions (HxWxD)	472 x 318 x 178 mm
Weight	15 kg
Certifications	CE, ABYC

Parameter	Value
Technology	V6 High Frequency Switching
Low Battery Voltage Shutoff	19 - 22 V ± 0.5 V (dynamic window)
Low Battery Voltage Restart	24 V ± 0.5 V
High Battery Voltage Shutoff	32 V ± 0.5 V
High Battery Voltage Restart	29 V ± 0.5 V
Maximum DC Ripple (battery)	5% RMS
Input Current (nominal load)	200 A
No-Load Consumption (On mode / Energy saving mode)	660 mA – 16 W / 300 mA – 7 W
Minimum DC Fuse (delayed)	250 A
Minimum Cable Size	70 mm²
Harmonic Distortion	< 1%
Power Factor	All power factors possible
Transfer System	Masterswitch/Systemswitch can be connected to all sine wave inverters
Operating Temperature Range	-25 °C to +60 °C, capacity reduction > 40°C
Cooling	Natural/forced
Protection Rating	IP23
Protections	Overheat, overload, short circuit, high battery, low battery
MasterBus Compatibility	Yes
