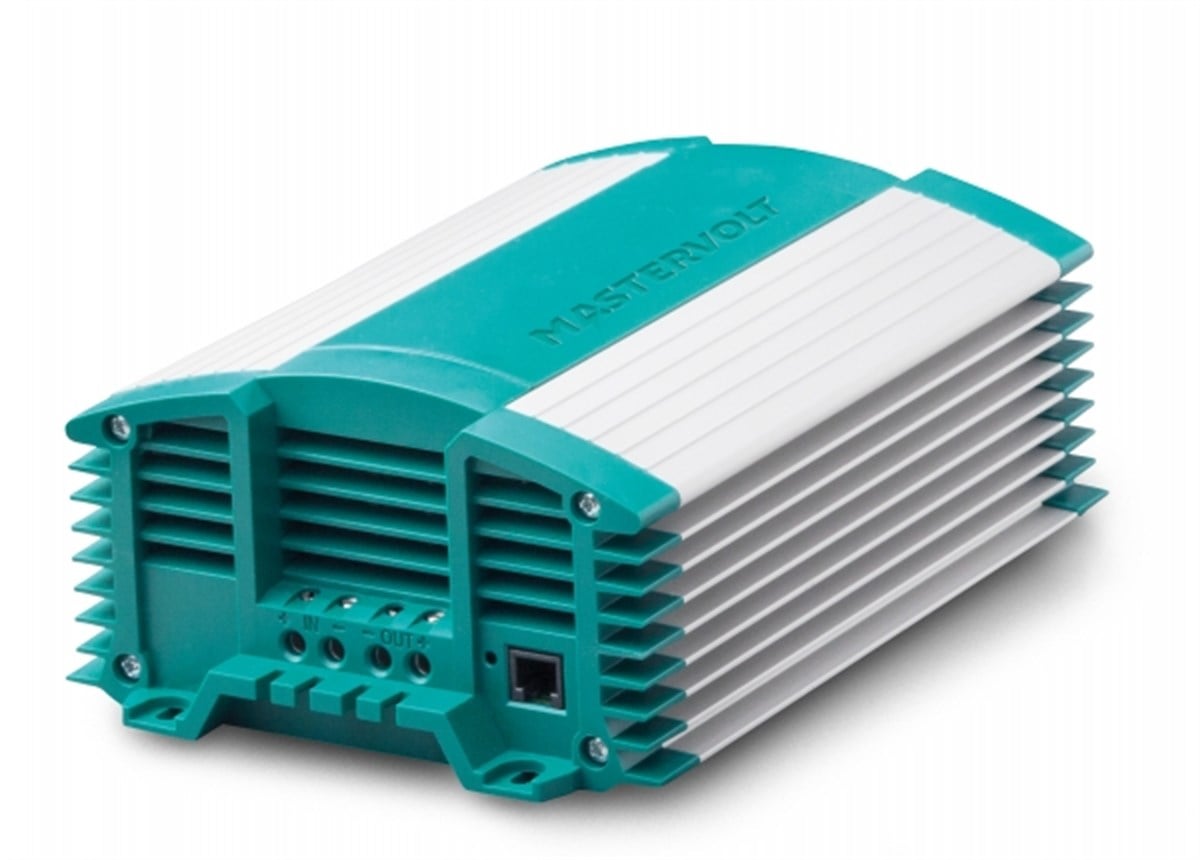

Mastervolt MAGIC 24/24-20A Galvanic Converter - 81300200

The Mastervolt Magic DC-DC converter with next-generation microprocessor control converts your 24V DC voltage to 24V DC output, allowing you to enjoy both DC power sources. Different electrical systems use different voltages. On a boat, the bow thruster or winch installation typically operates at 24V, while navigation and communication equipment usually runs on 12V. This compact and lightweight DC-DC converter enables you to reach different voltages from your boat's main system voltage while ensuring proper DC power supply onboard. Features include battery charging capability and dimmer function.

Key Features

Next-generation microprocessor control for precise voltage conversion
Galvanic isolation for safe operation between different voltage systems
Advanced 3-step charging method for battery charging capability
Dimmer function for flexible voltage control
Robust aluminum housing providing shock protection
Minimal heat generation for easy installation
Corrosion-resistant exterior design
Controlled cooling fan maintains optimal temperature
Parallel operation capability for increased capacity (up to 40A, 60A)
Step-up or step-down operation modes

Technical Specifications

Parameter	Value
Model / Part No.	81300200
Nominal Output Voltage	27.2 V
Output Voltage Range (Selectable)	20-28.5 V
Output Voltage Dimmer Range	8-26 V
Max. Output Power	580 W
Nominal Output Power	580 W
Max. Output Current	20 A
Output Charge Current (3-step mode)	16 A
Output Voltage Stabilization	2% under extreme conditions
Nominal Input Voltage	24 V
Input Voltage Range	19-32 V
Input Voltage Range (3-step charge mode)	24-32 V
Low Input Voltage Setpoint	20 V
Low Voltage Setpoint Delay	30 seconds
Galvanic Isolation	Yes
Voltage Limiting	Yes
Efficiency	> 90% at nominal, 92% at full load
Dimmer Feature	Yes
Alarm Contact	Yes
Dimensions (h x w x d)	227 x 154 x 81 mm
Weight	1.8 kg
Compliance	CE

Parameter	Value
3-step Charge Option	Yes (DIP switch settings)
DC Consumption	< 115 mA
Connections	Screw terminals (max. cable cross-section 16 mm²)
Temperature Range (ambient temp.)	-25 °C to 80 °C, Derating > 40 °C
Protection Degree	IP21
Cooling	Maintenance-free variable fan
Sound Level	< 48 dBA at 1 meter
Protections	Overload and over temperature
MasterBus Compatibility	Via MasterBus serial interface
