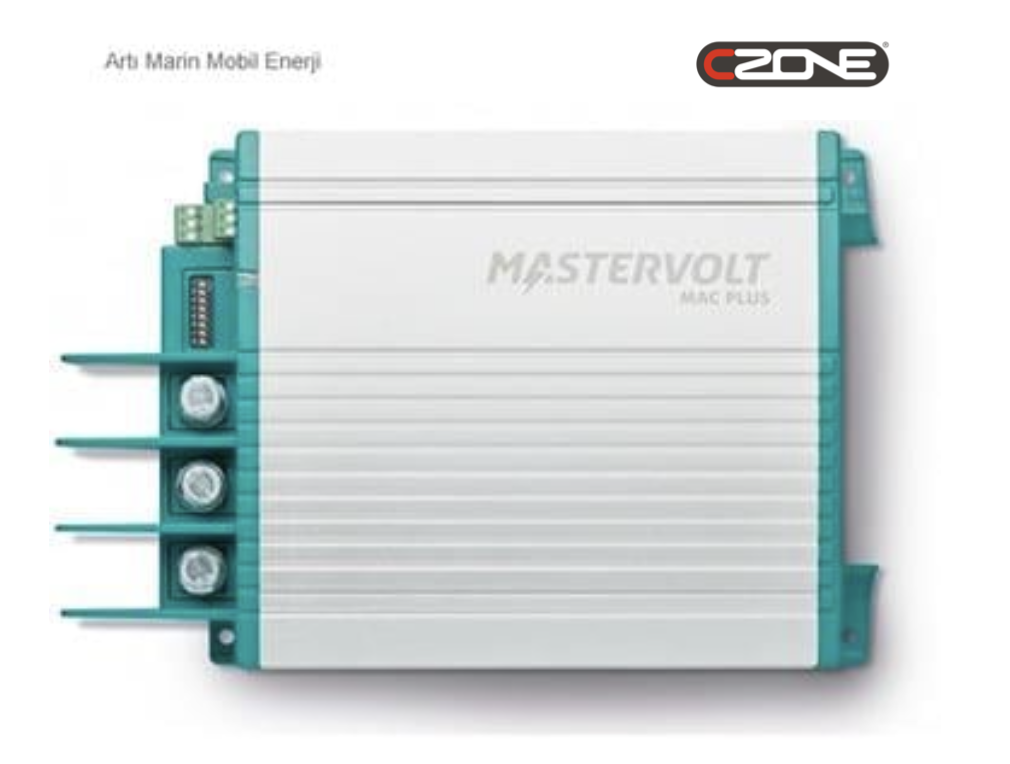

Mastervolt Mac Plus 24/12-50 Convertor + Czone - 81205205

Mastervolt Mac Plus 24/12-50 Convertor + Czone - 81205205

Price : €535,00  + VAT
Incl. VAT : ₺34.558,86
Price in TL : ₺28.799,05(₺5.759,81 + VAT)
iskontoen
Mastervolt Mac Plus 24/12-50 Convertor + Czone - 81205205
:

Mastervolt Mac Plus 24/12-50 Convertor + Czone - 81205205

Too often, service batteries don't get the charge they need. This is a problem made worse by smart alternators and start/stop systems, which result in slow and insufficient charges. The Mac Plus DC-DC charger solves this problem, providing a quick, safe, and consistent charge to your service battery. And, by knowing when the engine is running and providing charge, you can be sure that the Mac Plus will never drain your starter battery.



Key Features

  • Fast and safe charging, even during short trips
  • Fanless design for silent operation
  • Suitable for flooded, Gel, AGM and Li-Ion batteries (incl. LiFePO4)
  • Even charges fully depleted batteries
  • Engine run detection protects starter battery
  • Adjustable current limits to meet Euro 5/6 requirements
  • Voltage stabilization protects sensitive equipment, lights and loads
  • Parallel operation to obtain charging capacities well over 100 Amps
  • MasterBus, CZone and NMEA 2000 compatible, for intelligent system monitoring and automation
  • Temperature compensation and voltage sense for an optimal charging result
  • E-Mark/R10 certification for mobile applications
  • Power supply mode offers stable power for sensitive loads
  • Heavy duty connections for easy installation and quick set up via DIP switches


Technical Specifications

Parameter Value
Model / Part No. 81205205
Nominal Input Voltage 24 V
Input Voltage Range 19-30 V
Nominal Output Voltage 12 V
Output Voltage Range 10-15 V
Max. Output Power 750 W
Nominal Output Power 710 W
Max. Output Current 50 A
Output Current (3-step mode) 50 A
Output Voltage Stabilization 2% at extreme temperatures, load and input
Galvanic Isolation No
Voltage Limited Yes
Efficiency > 95% at nominal input Voltage, 97% peak
Alarm Contact Yes, through Masterbus
Dimensions (h x w x d) 255 x 165 x 66 mm (10.0 x 6.5 x 2.6 inch)
Weight 2.0 kg (4.4 lb)
Compliance CE, E-mark, SAE J1171 & ISO 8846 Ignition Protected
Communication Masterbus, CZone & NMEA 2000
Parameter Value
Charge Characteristic 3-steps+
No-load Consumption < 2 mA
Connections 3x M8 terminal
Temperature Range (ambient temp.) -25 °C to 60 °C, derating > 40 °C
Protection Degree IP23
Cooling Natural Cooling
Protection Overload and over temperature, DC Short Circuit
MasterBus Compatible Yes
