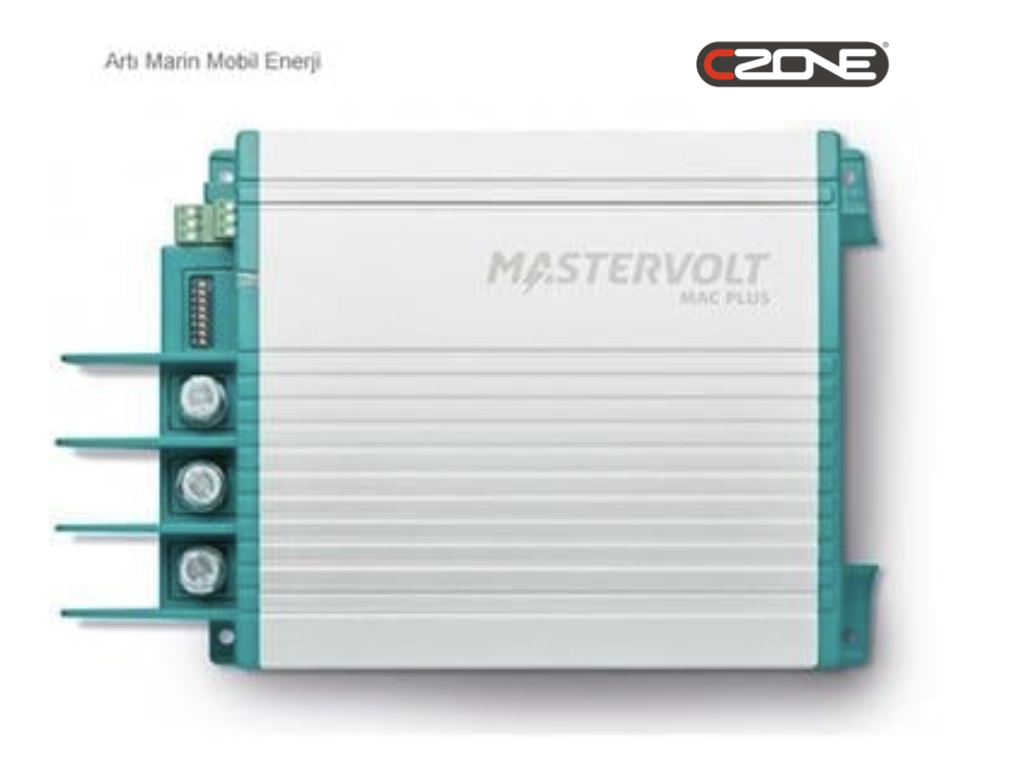

Mastervolt Mac Plus 12/48-15 Convertor + Czone - 81203205

Boost Your Service Battery! Too often, service batteries don't get the charge they need. This is a problem made worse by smart alternators and start/stop systems, which result in slow and insufficient charges. The Mac Plus 48V and 36V solve that problem. With brand new bi-directional technology, the Mac Plus can use each side as an input or output, delivering a reliable and consistent charge to both service and starter batteries. Compatibility with CZone®, NMEA 2000® and MasterBus delivers truly superior monitoring and control, and ensures Mac Plus integrates easily into complete systems. Achieve the best performance possible via various controllers and high quality MOSFETs. And configure the Mac Plus with ease via MasterAdjust, the CZone configuration tool, or even via the on-board DIP switches.

Key Features

Bi-directional technology
Get either 48V or 36V power from a single unit
Fast and safe charging, even during short trips
Fanless design for silent operation
Suitable for flooded, Gel, AGM and Li-Ion batteries (incl. LiFePO4)
Even charges fully depleted batteries
Engine run detection protects starter battery
Adjustable current limits to meet Euro 5/6 requirements
Voltage stabilization protects sensitive equipment, lights and loads
Parallel operation to obtain charging capacities well over 100 Amps
MasterBus, CZone and NMEA 2000 compatible, for intelligent system monitoring and automation
Temperature compensation and voltage sense for an optimal charging result
E-Mark/R10 certification for mobile applications
Power supply mode offers stable power for sensitive loads
Heavy duty connections for easy installation and quick set up via DIP switches

Technical Specifications

Parameter	Value
Model / Part No.	81203205
Nominal Input Voltage	12 V
Input Voltage Range	10-15 V
Nominal Output Voltage	48 V
Output Voltage Range	30-60 V
Max. Output Power	900 W
Max. Output Current	15 A
Output Current (3-step mode)	15 A
Output Voltage Stabilization	2% at extreme temperatures, load and input
Galvanic Isolation	No
Voltage Limited	Yes
Efficiency	> 95% at nominal input Voltage, 97% peak
Alarm Contact	Yes, through Masterbus
Dimensions (h x w x d)	255 x 165 x 66 mm
Weight	2.0 kg
Compliance	CE, E-mark, SAE J1171 & ISO 8846 Ignition Protected

Parameter	Value
Charge Characteristic	3-steps+
No-load Consumption	< 2 mA
Connections	3x M8 terminal
Temperature Range (ambient temp.)	-25 °C to 60 °C, derating > 40 °C
Protection Degree	IP23
Cooling	Natural Cooling
Protection	Overload and over temperature, DC Short Circuit
MasterBus Compatibility	Yes
Communication	Masterbus, CZone & NMEA 2000
