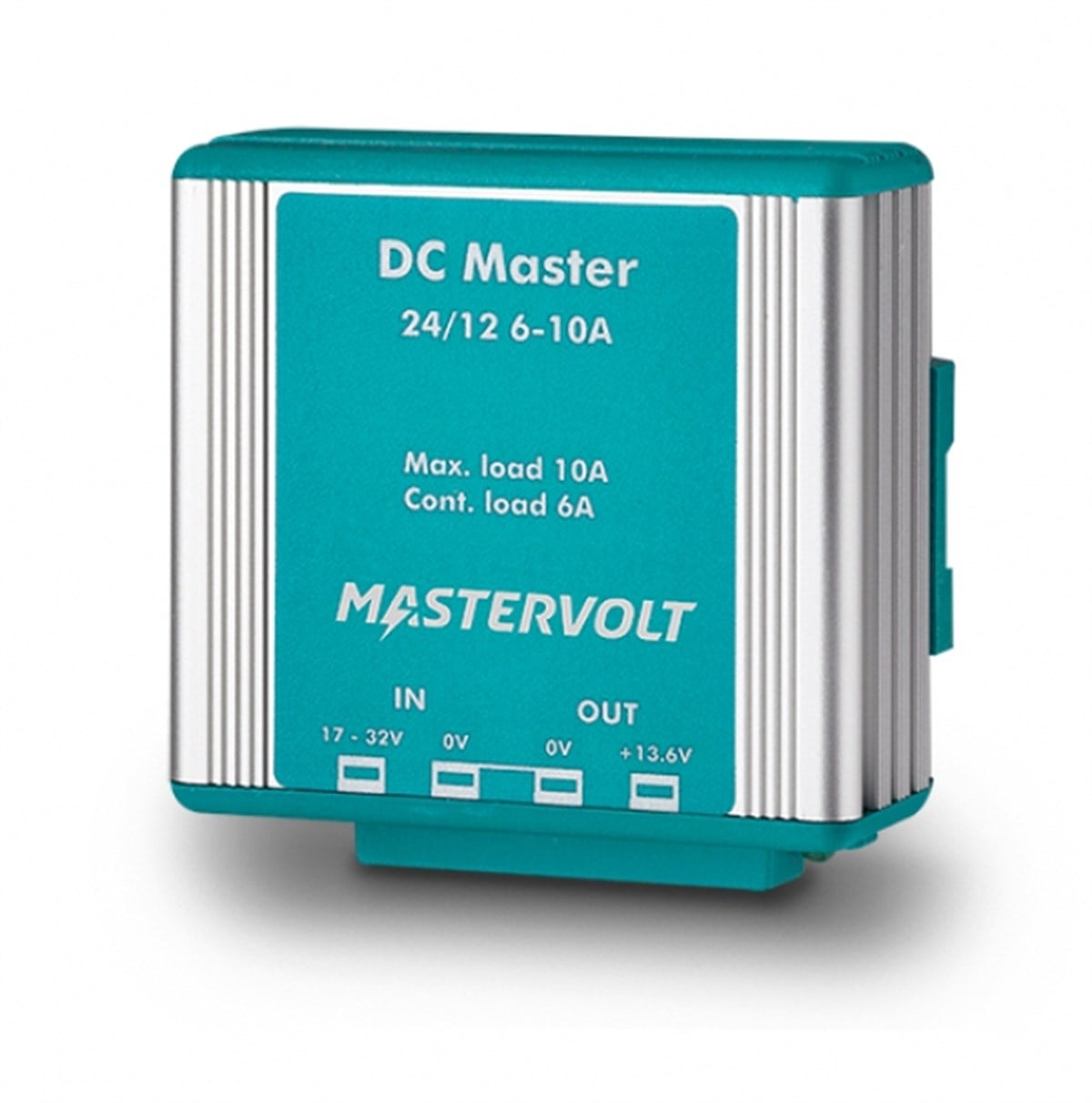

Mastervolt DC Master 24/12-6 Convertor - 81400200

The voltage required for DC power can vary significantly. Some equipment on board uses 12V while other equipment uses 24V. Mastervolt offers a compact DC-DC converter series for both 12V and 24V battery systems to meet different DC power needs. This ensures a stable and correct power supply for every connected consumer device. Mastervolt has a wide range of DC Master converters available, both galvanically isolated and non-isolated models.

Key Features

Semi-professional marine and caravan applications
Easy installation with built-in mounting brackets, screws and connection sockets
Smart electronics minimize unnecessary heat generation
Continuous output capability
Galvanically isolated and non-isolated models available
Two minutes extra peak power for short-term needs
Excellent price/performance ratio
Slim DC-DC converter design
2-minute extra capacity for short-term peak power requirements
Complete package includes mounting brackets, screws, bolts and connections

Technical Specifications

Parameter	Value
Model / Part No.	81400200
Nominal Output Voltage	13.6 V
Maximum Output Power	136 W
Nominal Output Power	82 W
Maximum Output Current (2 min intervals)	10 A
Continuous Output Current	6 A
Nominal Input Voltage	24 V
Input Voltage Range	20-32 V
Galvanic Isolation	No
Stabilization	Yes
Dimensions (h x w x d)	89 x 87 x 50 mm
Weight	0.250 kg
Compliance	CE, E-mark

Parameter	Value
DC Consumption	< 15 mA
Connections	Push-fit
Temperature Range (ambient temp.)	-25 °C to 80 °C, Capacity reduction > 30 °C
Cooling	Natural cooling
Sound Level	< 30 dBA @ 1 m
Protection Degree	IP53
