Mastervolt DC Master 24/12-12 Convertor - 81400300
:

Mastervolt DC Master 24/12-12 Convertor - 81400300

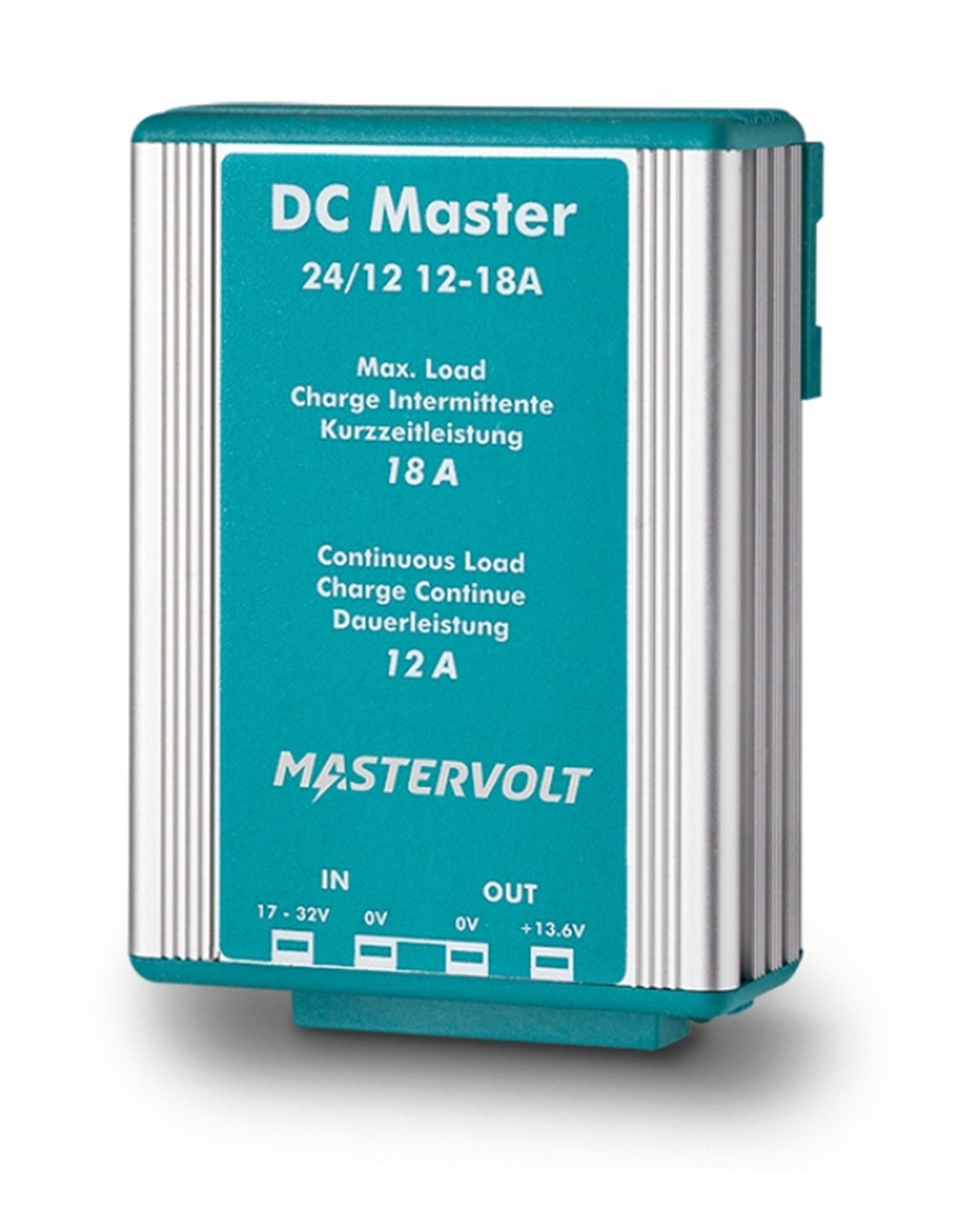

The Mastervolt DC Master 24/12 12-18A is a compact DC-DC converter that delivers a stable 13.6 V output from a 24 V system. It supplies the correct power to 12 V equipment from a 24 V battery bank through a small, lightweight, and quiet unit.

On boats and in caravans some equipment runs at 12 V while other devices run at 24 V; the DC Master meets this need with its low-heat intelligent electronics. It provides 2 min of additional peak power for short-duration demands and installs quickly with integrated mounting brackets and push-fit connectors.

Key Features

  • Compact, lightweight, and slim DC-DC converter design
  • Regulated (stabilized) output voltage
  • Continuous operation + 2 min short-duration peak power
  • Easy installation with integrated brackets, screws, and connectors
  • Low heat from intelligent electronics; natural cooling, quiet (< 30 dBA)
  • Suitable for marine and caravan use — IP53, CE/E-mark

Applications

  • Powering 12 V equipment (navigation, communications, lighting) in a 24 V system
  • Deriving a stable 12 V rail from an existing 24 V bank
  • Caravan and semi-professional marine DC systems
  • Low-power points requiring precise DC supply

In the Box

  • DC Master 24/12 converter unit
  • Mounting brackets, screws, and connection sockets

Technical Specifications

General / ElectricalValue
Model / Part No.81400300
Input / output voltage (nominal)24 V / 13.6 V
Input voltage range20-32 V
Continuous output current12 A
Max output current (2 min)18 A
Max / nominal output power245 W / 164 W
Galvanic isolationNo
Technical & PhysicalValue
Dimensions (H×W×D) · Weight127 × 87 × 50 mm · 0.405 kg
ConnectionPush-fit (snap-in) connection
RegulationYes
EnvironmentalIP53 · -25…80°C (>30°C capacity derating) · natural cooling · < 30 dBA
CertificationCE, E-mark

Expert Support

Our expert team is available to assist with correctly bridging 12 V and 24 V systems on your boat and selecting capacity and cable cross-sections.Feel free to reach out with any questions — let's plan your installation together.
