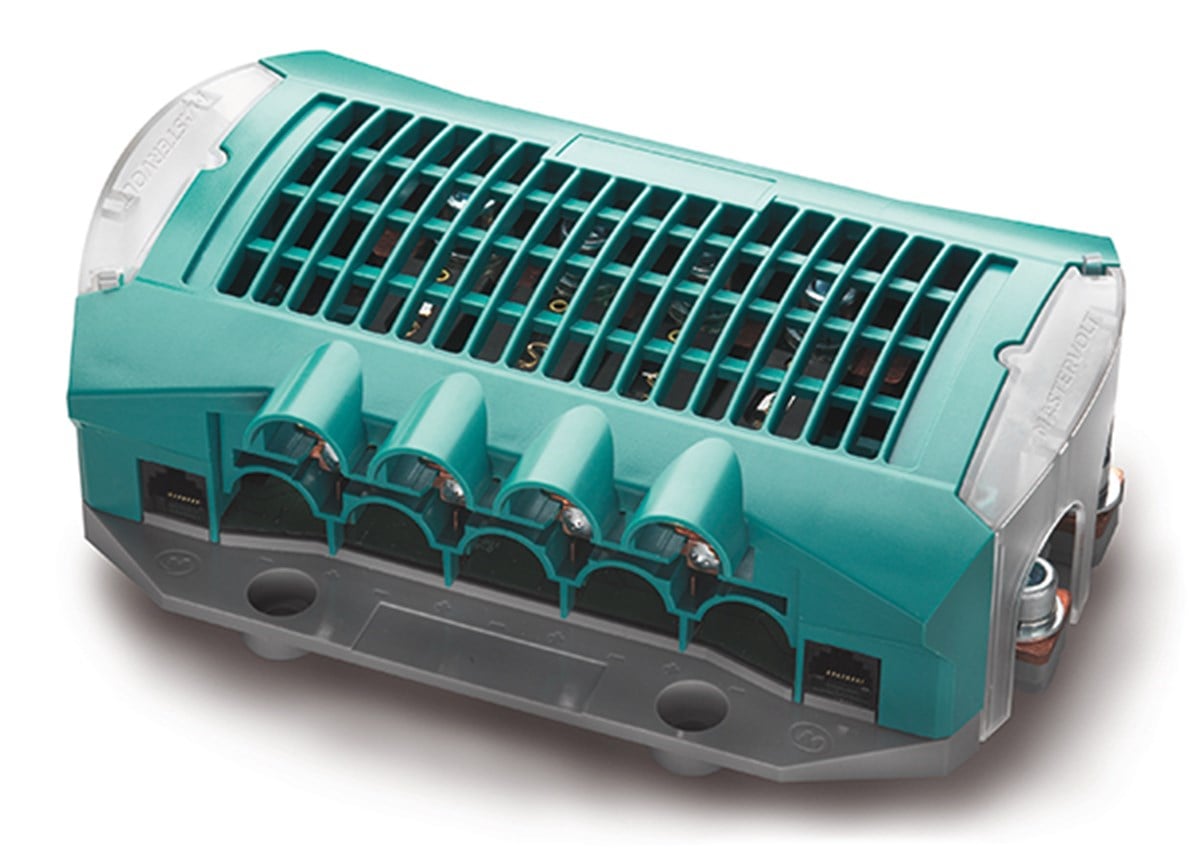

Mastervolt DC Distribution 500 - 77020200

Modular DC distribution unit that connects to MasterShunt in seconds. Provides a fully trackable system using advanced technology, connecting your batteries with main DC connections, battery charger, inverter, alternator, and solar panels.



Key Features

  • Modular DC distribution unit for flexible system configuration
  • Connects to MasterShunt in seconds for quick installation
  • Fully trackable system using advanced technology
  • Connects batteries with main DC connections, battery charger, inverter, alternator, and solar panels
  • Supports 12, 24, and 48 VDC battery systems
  • 300A continuous, 500A for 5 minutes capacity
  • Standard fuses: 80A, 125A, 160A-ANL
  • Includes spare 125A ANL type fuses
  • Fuse monitoring alarms for system protection
  • IP21 protection rating
  • Includes MasterBus terminator and MasterBus cable


Technical Specifications

Parameter Value
Model / Part No. 77020200
Dimensions (HxWxD) 150 x 216 x 65 mm
Weight 1.2 kg
Battery Voltage 12, 24, and 48 VDC
Current 300A continuous, 500A for 5 min
MasterBus Power Supply No
Standard Fuses 80A, 125A, 160A-ANL
Spare Fuses 125A ANL type
Alarms Fuse monitoring
Protection Rating IP21
Contents DC Distribution 500, 5 fuses, MasterBus terminator, MasterBus cable, cable protection for DC connections
