Mastervolt Battery Monitoring BTM III - 70403164

Mastervolt Battery Monitoring BTM III - 70403164

Price : €490,00  + VAT
Incl. VAT : ₺31.480,34
Price in TL : ₺26.233,62(₺5.246,72 + VAT)
iskontoen
Mastervolt Battery Monitoring BTM III - 70403164
:

Mastervolt Battery Monitoring BTM III - 70403164

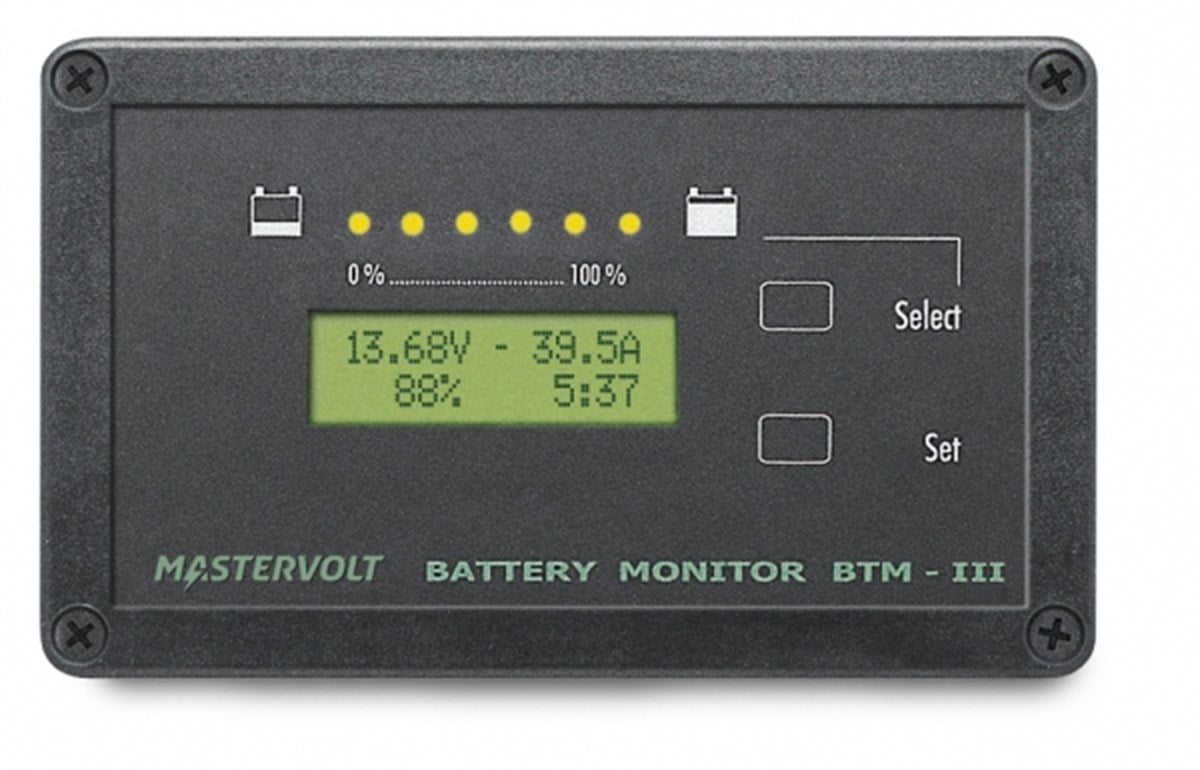

Advanced battery monitoring panel that eliminates unpleasant surprises like sudden battery depletion. The advanced and popular panel provides extensive information including voltage reading, current reading, amperage, remaining time, and the percentage of remaining capacity for the main battery bank. Features built-in LED indicators to show battery level. Through the readable LCD screen, you can view real-time information and historical data. In one screen view, you can see charging status and voltage values of 3 separate battery banks.



Key Features

  • Advanced battery monitoring for up to 3 separate battery banks
  • Real-time voltage, current, and amperage readings
  • Remaining time and percentage of capacity indicators
  • Readable LCD screen for clear information display
  • Built-in LED indicators for quick battery level status
  • Historical data tracking for battery performance analysis
  • Maximum capacity support up to 999 Ah
  • High accuracy current measurement ±0.8%
  • Wide voltage range 8-50 V supply voltage


Technical Specifications

Parameter Value
Model / Part No. 70403164
Battery Outputs 3
Dimensions 65 x 120 x 40 mm (2.6 x 4.7 x 1.6 inch)
Weight 0.25 kg
Maximum Capacity 999 Ah
Supply Voltage 8-50 V
Voltage Range 7-35 V
Current Consumption 28 mA
Shunt Rating 500 A
Current Accuracy ±0.8%
Remaining Time Indicator Available
Historical Data Available
Connection Cable Not included
