Mastervolt AC Master 24/2500 Inverter - 28022500

Mastervolt AC Master 24/2500 Inverter - 28022500

Price : €1.485,00  + VAT
Incl. VAT : ₺95.342,35
Price in TL : ₺79.451,96(₺15.890,39 + VAT)
iskontoen
Mastervolt AC Master 24/2500 Inverter - 28022500
:

Mastervolt AC Master 24/2500 Inverter - 28022500

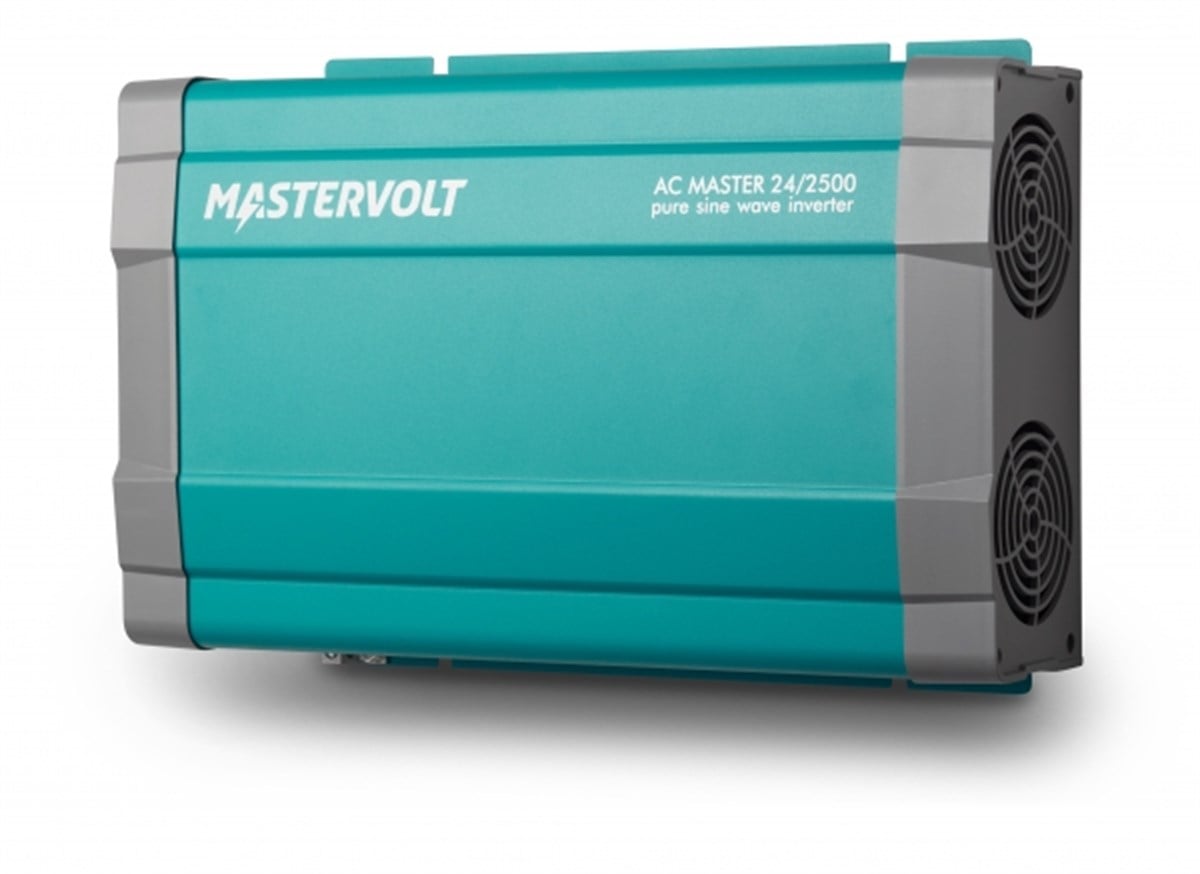

The Mastervolt AC Master 24/2500 is a pure sine wave inverter that delivers 2,500 W of continuous power in a 24 V system. High-frequency technology eliminates the transformer hum found in conventional inverters; pure sine wave output safely powers sensitive devices such as televisions, audio systems, and computers.

Ideal for cruising vessels and semi-professional applications; it remains compact and lightweight despite its powerful output. It rates capacity in WATTS rather than VA and offers approximately 20% higher real-world performance than typical VA-rated models. Its IP21 protection class suits marine use, and the E-mark certificate suits mobile applications.

Key Features

  • Pure sine wave keeps sensitive devices running continuously and error-free
  • High-frequency technology: no transformer hum, 88% efficiency
  • Watt-based capacity — approximately 20% higher performance than typical VA models
  • Overload, overtemperature, reverse polarity, and low/high voltage protections
  • Temperature-controlled fan and adjustable energy-saving mode — low consumption and noise
  • LED indicator, IP21 marine compliance, and E-mark certificate

Applications

  • AC device supply on motor and sailing vessels with 24 V systems
  • 230 V use from batteries at anchor or away from the dock
  • RV and mobile home energy systems
  • High loads such as a refrigerator, microwave, and power tools

In the Box

  • Mastervolt AC Master 24/2500 inverter unit
  • DC connection cable

Technical Specifications

General / ElectricalValue
Model / Part No.28022500
Nominal battery voltage24 V
Output voltage200/220/230/240 V – 50/60 Hz (selectable)
Continuous power (40°C)2500 W
Maximum load< 3,000 W (3 sec) / < 4,000 W (0.2 sec)
Efficiency%88
TechnologyHigh frequency, galvanically isolated, true sine
Physical & InstallationValue
Dimensions (H×W×D)283 × 436 × 128 mm
Weight8 kg
Input current (nominal)125 A
No-load consumption (on / eco)< 3.6 A / < 1.1 A
Min. DC fuse · cable160 A · 50 mm²
ConnectionPlug-in AC (Schuko) · LED indicator · dry contact alarm
Compatible remote controlAC Master wired remote control (70405080)
Protection & CertificationIP21 (horizontal mount) · CE, E-mark · overtemperature/overload/short circuit/voltage

Expert Support

Our expert team is available to help with the correct inverter power, battery bank compatibility, and fuse/cable sizing for your vessel or mobile system.Feel free to reach out with any questions — let's find the best solution for your needs together.
