CZone Control 1 Switch Control Interface - 80-911-0122-00

Price : €1.410,00  + VAT
Incl. VAT : ₺90.586,30
Price in TL : ₺75.488,58(₺15.097,72 + VAT)
:
Add to Wishlist
Add to My Wishlist
Compare
Notify me when the price goes down
Notify me when it is in stock
Recommend
Write a comment

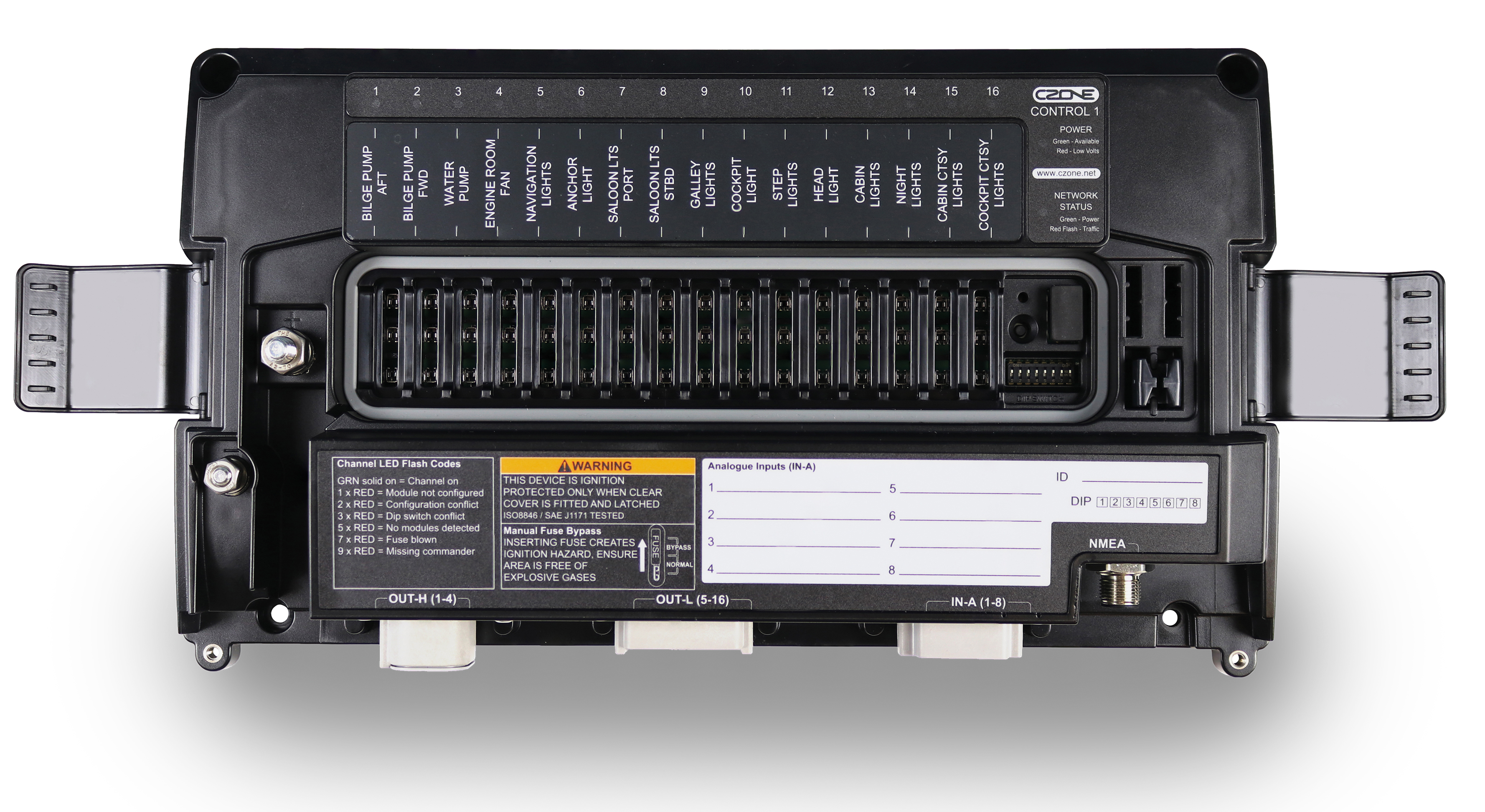

CZone Control 1 Interface

The Control 1 Interface combines multiple input and output devices into one module. This minimizes time and effort during installation by reducing connections between multiple modules and the footprint required.

The Control 1 Interface incorporates many of the core features and benefits of the fully featured Combination Output Interface (COI), but has been re-engineered to offer improved cost-per-channel value while delivering essential features required for small systems.

Key Features & Benefits

  • 4 x 25A high current outputs
  • 12 x 10A low current outputs (dimmable)
  • 8 analogue inputs
  • USB port for firmware updates
  • Built-in load shedding
  • Bilge pump run detection
  • Status LEDs for all outputs
  • Voltage monitoring
  • PWM light dimming capability
  • ABYC compliant ATC fusing
  • Mechanical bypass for redundancy
  • Competitive price point

Applications

  • Small to medium vessel systems
  • Recreational vehicle applications
  • Cost-sensitive installations
  • Pontoon boat systems
  • Essential feature requirements
  • Complete CZone system in single box

What's Included

  • Control 1 Interface Unit
  • Installation manual
  • User documentation
  • Deutsch connector kit (optional)

Technical Specifications

Parameter Specification
Part Number 80-911-0122-00
High Current Outputs 4 x 25A
Low Current Outputs 12 x 10A (dimmable)
Analogue Inputs 8 inputs (0-32V, 0-1000 Ohm, 4-20mA)
Max Continuous Current 150A at 40°C
Circuit Protection ATC fuse with alarms
Circuit Bypass Mechanical bypass all channels
Communication Protocol NMEA 2000
Parameter Specification
Power Supply M8 stud positive, M6 stud negative
Supply Voltage 9-32V
Power Consumption 100mA (all on) / 75mA (all off) at 13.2V
Connectors Deutsch
Protection Degree IPX5 (mounted at 0° +/- 90°)
Dimensions (H x W x D) 339 x 194 x 65 mm
(13.3 x 7.6 x 2.6 inch)
Weight 1.9 kg (4.2 lb)
Compliance CE, ABYC, NMEA, ISO8846/SAEJ1171
