BEP Smart Battery Hub for 3 Motors - 80-716-0031-00

Price : €1.870,00  + VAT
Incl. VAT : ₺120.139,27
Price in TL : ₺100.116,06(₺20.023,21 + VAT)
iskontoen
:

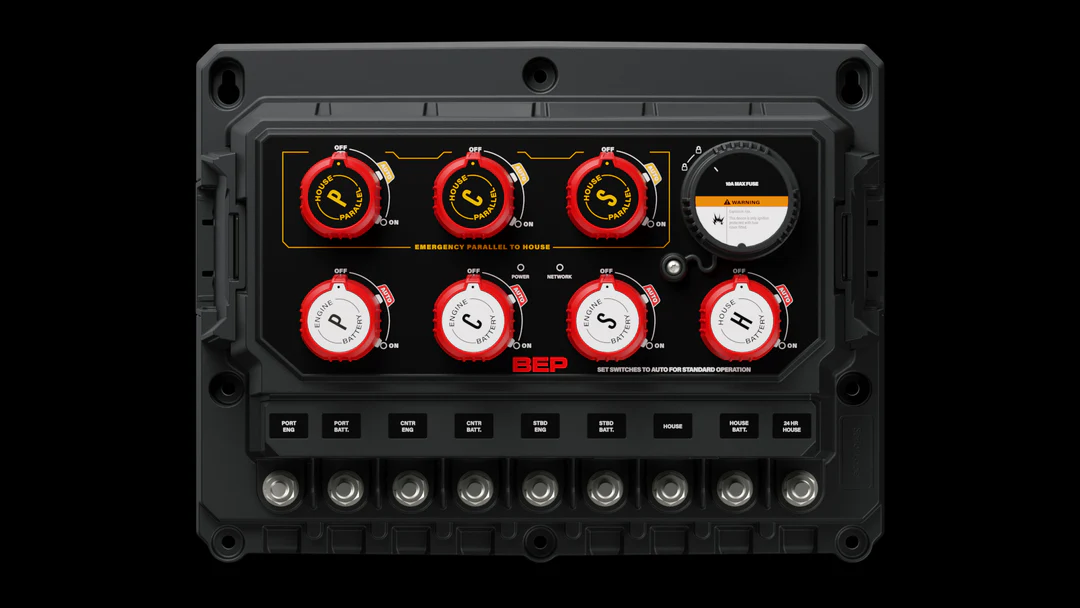

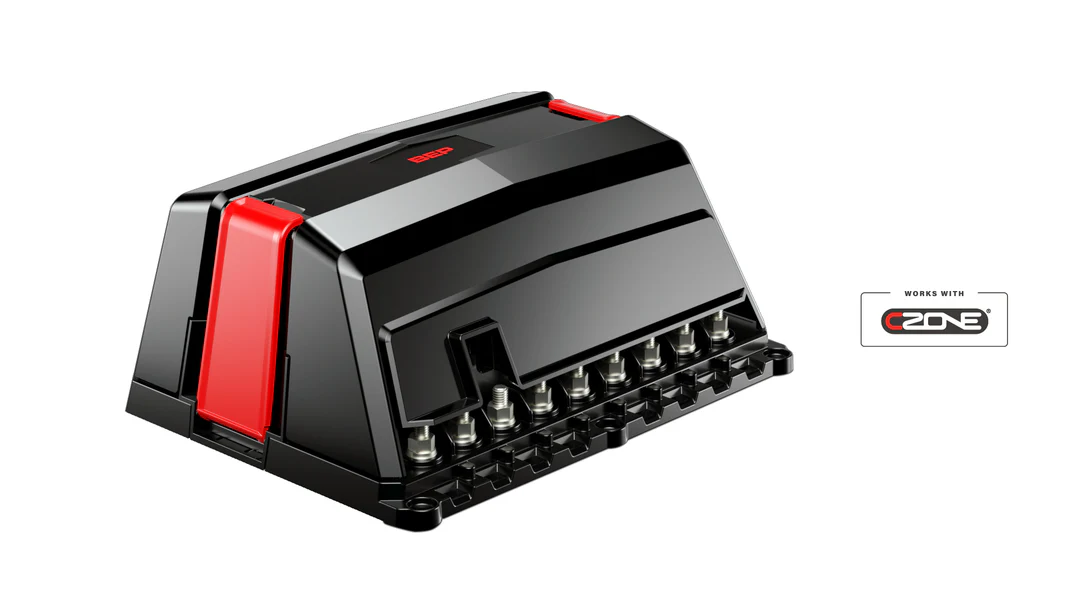

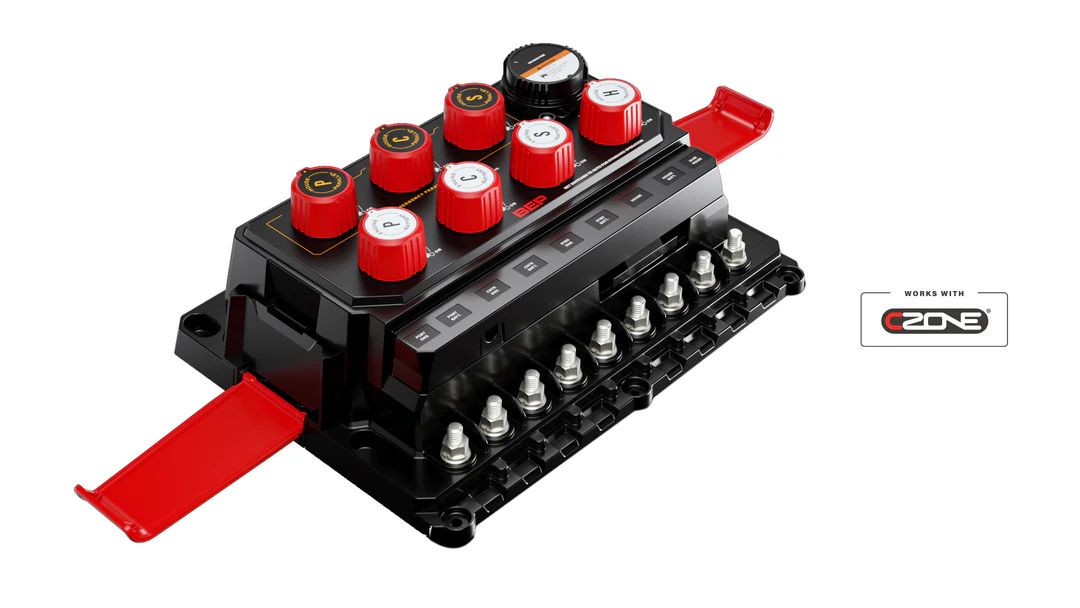

BEP Smart Battery Hub 3 Motors - 80-716-0031-00

The Smart Battery Hub (SBH) from BEP is an advanced battery management system designed for boats with three or more motors. It features NMEA2000/IPX7 compatibility, remote-activated switches, and bidirectional voltage-sensitive switching (VSS).

With emergency parallel functionality and ignition protection against gas ignition, the robust IPX7 housing allows for easy installation. It monitors battery voltage and state of charge, supports two or three motor configurations, and includes manual safety controls. Rated at 300A with a maximum capacity of 1450A, the hub operates at 12/24V and weighs 8.4 kg, making it an essential component for efficient battery management on marine vessels.

Key Features

  • NMEA2000 / IPX7 battery management system
  • Remote-activated switches
  • Bidirectional voltage-sensitive switching (VSS)
  • Emergency parallel functionality
  • Robust IPX7 housing for easy installation
  • Ignition protected against gas ignition
  • NMEA2000 communication for multifunction display
  • Configurations for two or three motors
  • Remote-controlled magnetic locking switches
  • Voltage-sensitive configurable switches
  • Battery voltage monitoring
  • Battery bank state of charge monitoring
  • 2 additional sensor inputs
  • Manual safety control for all battery switches

Technical Specifications

Parameter Value
Rated current 300 A
Consumption 92 mA
Height 275 mm
Protection rating IPX7
Rated capacity 700 A
Maximum capacity 1450 A
Width 159 mm
Length 365 mm
Model For 3 motors
Weight 8.4 kg
Voltage 12/24 V
